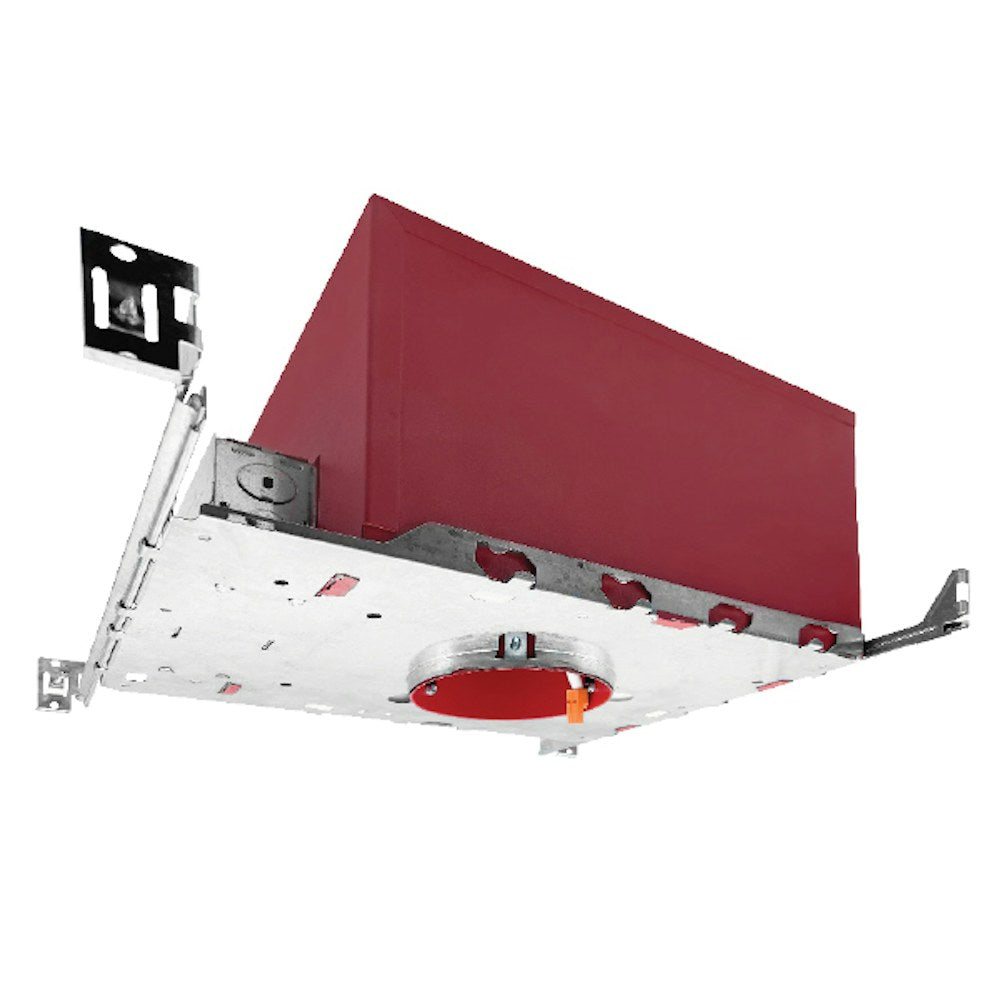

EnVision C4-NC-ICAT-LED-FR – 4" Fire Rated New Construction Can

Product Overview

The EnVision C4-NC-ICAT-LED-FR is a 4-inch fire-rated IC can for new construction recessed lighting. It is rated for 120–277V and uses a non-dimmable driver configuration.

The housing is IC rated and airtight for direct contact with insulation. Its integrated non-combustible insulation is designed to help minimize sound transfer between floors.

Key Features

• 4-inch fire-rated new-construction IC housing
• 120–277V, non-dimmable driver configuration
• IC rated and airtight for direct insulation contact
• Two-hour fire resistance
• Title 24 Orange Quick Connect Socket
• ETL Listed

4-Inch Fire-Rated New-Construction Housing

The C4-NC-ICAT-LED-FR is a 4-inch fire-rated IC can for new construction. EnVision identifies the series for general recessed lighting in residential and multifamily settings, as well as office, meeting room, education, healthcare, retail, and hospitality applications.

Insulation Contact and Fire Resistance

This housing is IC rated and airtight for direct contact with insulation. EnVision specifies two-hour fire resistance and integrated non-combustible insulation intended to minimize sound transfer between floors.

• Includes a Title 24 Orange Quick Connect Socket.
• ETL Listed; the series documentation also states that it meets Title 24 requirements and is ANSI/UL 263 certified.

Voltage and Dimming

The C4-NC-ICAT-LED-FR is rated for 120–277V and uses the series’ UNV non-dimmable driver configuration. The 0–10V configuration has a separate model number and is not this SKU.

• Built-in 2.5 kV surge protector.
• Power factor greater than 0.9; THD less than 20% with the stated ±5% tolerance; 50/60 Hz.

Mounting and Ceiling Configurations

The housing is designed for ceiling plenums using 2×8 joists or taller and is also specified for T-grid and drop-ceiling applications. Pre-installed hanger bars can be nailed to regular lumber, engineered lumber, and laminated beams.

• Integral T-bar slots span up to 24 inches and can be repositioned 90 degrees.
• Hanger-bar score lines allow tool-free size reduction; an integral leveling flange supports alignment with joists.
• The junction box has two ¾-inch knockouts, seven ½-inch conduit knockouts, one ⅜-inch knockout, and four pry-out knockout slots for Romex installation.

Before You Order

Confirm that the 4-inch, 120–277V non-dimmable model matches your project requirements.
