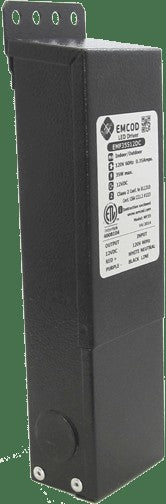

EMCOD ML75S12DC Indoor Outdoor Magnetic DC Driver 75W 12VDC

Product Overview

The EMCOD ML75S12DC is an indoor/outdoor magnetic DC driver with a 12V DC output and a maximum load of 75W. It is intended for low-voltage LED, halogen, and xenon fixtures.

This model is a dimmable, hard-wire power supply with a manually reset primary circuit breaker and secondary protection. Its enclosure is rated NEMA 3R or IP24.

Key Features

• 12V DC output with a maximum load of 75W
• Dimmable magnetic driver with hard-wire connection
• Primary manually reset circuit breaker and secondary protection
• Polyester-resin encapsulation for quiet operation

12V DC Output and 75W Maximum Load

The EMCOD ML75S12DC provides 12V DC output and is rated for a maximum load of 75W. Check that the connected low-voltage lighting load matches these ratings.

Fixture Applications and Dimming

This dimmable magnetic driver is identified for low-voltage LED, halogen, and xenon fixtures. It is a hard-wire power supply.

Enclosure and Electrical Protection

The enclosure is described as rated NEMA 3R or IP24. The driver includes a manually reset primary circuit breaker and secondary protection. Its two-section bobbin provides insulation between the primary and secondary sides, and polyester-resin encapsulation is specified for quiet operation.

Dimensions

The listed dimensions are H = 8.13, W = 3.93, and D = 1.59. Units are not specified.

Before You Order

Confirm that the ML75S12DC model, 12V DC output, and 75W maximum load suit the intended lighting application.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EMCOD ML75S12DC Indoor Outdoor Magnetic DC Driver 75W 12VDC. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
