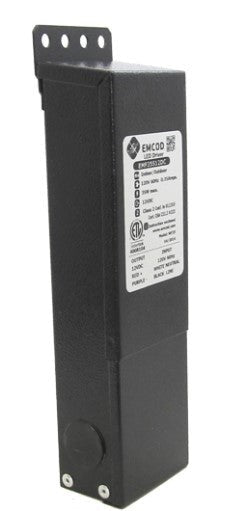

EMCOD ML60S24AC-B Indoor Outdoor Magnetic AC Driver 60W 24VAC C2

Product Overview

EMCOD ML60S24AC-B is a magnetic AC driver for low‑voltage lighting circuits, rated for a 60W maximum load with a 24V AC output and C2 class designation.

The listing specifies a dimmable magnetic hard‑wire design, a primary manually reset circuit breaker, a boost tap, two‑section bobbin insulation, polyester resin encapsulation, and an outdoor enclosure rated NEMA 3R / IP24.

Key Features

• 60W maximum load
• 24V AC output
• Dimmable magnetic hard‑wire power supply
• Boost tap to compensate voltage drop on long runs
• Primary manually reset circuit breaker
• Two‑section bobbin for primary/secondary separation
• Polyester resin encapsulation
• Outdoor enclosure rated NEMA 3R / IP24

What this driver does

The ML60S24AC-B is a magnetic hard‑wire AC driver that provides 24V AC output for low‑voltage lighting fixtures, with a maximum load of 60W and a C2 class designation.

• Steps down mains voltage to 24V AC
• Designed for dimmable low‑voltage lighting circuits
• This SKU provides a 24V AC output as listed

Suitable applications

The product listing identifies common uses such as low‑voltage lighting fixtures, including halogen and xenon, and AC landscape or architectural lighting circuits that require a 24V AC supply.

• Low‑voltage lighting fixtures
• Halogen lighting
• Xenon lighting
• AC landscape or architectural lighting circuits

Electrical performance and protection

Key electrical specs from the listing include a 60W maximum load, 24V AC output and a C2 class designation. The unit includes a primary manually reset circuit breaker and lists a boost tap to help compensate for voltage drop on long runs.

• Max load: 60W
• Output: 24V AC
• Class designation: C2
• Primary manually reset circuit breaker
• Boost tap for voltage compensation

Enclosure and environmental suitability

The listing states the driver is encapsulated in polyester resin and supplied in an outdoor‑rated enclosure with NEMA 3R / IP24 protection; this indicates suitability for general outdoor locations where protection from rain and limited moisture is required.

• Polyester resin encapsulation
• Outdoor enclosure rating: NEMA 3R / IP24

Dimensions

Use the listed physical dimensions for planning and mounting.

• Height: 7 (units as provided by manufacturer)
• Width: 2.11 (units as provided by manufacturer)
• Depth: 1.54 (units as provided by manufacturer)

Before You Order

Confirm the SKU and that a 24V AC, 60W magnetic driver meets your fixture and installation requirements.

• Confirm SKU: ML60S24AC-B
• Ensure fixtures accept 24V AC and total load does not exceed 60W
• Verify mounting space and enclosure rating

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EMCOD ML60S24AC-B Indoor Outdoor Magnetic AC Driver 60W 24VAC C2. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
