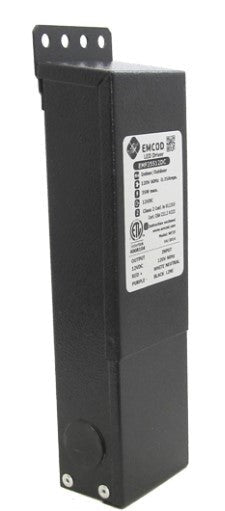

EMCOD ML60S12AC-B Indoor Outdoor Magnetic AC Driver 60W 12VAC C2

Product Overview

The EMCOD ML60S12AC-B is a magnetic AC driver for low-voltage lighting fixtures. It provides 12V AC output and has a maximum load of 60W.

This dimmable, hard-wire power supply is listed for indoor and outdoor use. Its stated applications include low-voltage, halogen and xenon lighting, as well as AC landscape or architectural lighting circuits.

Key Features

• 12V AC output with a maximum load of 60W
• Dimmable magnetic driver with hard-wire connection
• C2 class designation
• Boost tap is listed for compensating voltage drop on long runs

12V AC Output and 60W Maximum Load

The ML60S12AC-B delivers 12V AC and is rated for a maximum load of 60W. The product carries a C2 class designation.

Lighting Applications and Dimming

This dimmable magnetic driver is intended for low-voltage lighting fixtures. Listed applications include halogen and xenon lighting, along with AC landscape or architectural lighting circuits.

• A boost tap is listed to compensate for voltage drop on long runs.

Driver Design and Dimensions

The driver is described as an indoor-outdoor model with a manually reset primary circuit breaker. Its two-section bobbin separates the primary and secondary sides, and polyester resin encapsulation is specified for quiet operation.

Listed dimensions are H = 7, W = 2.11 and D = 1.54. Units are not specified.

Before You Order

Confirm the model number and quantity required before ordering. Check that the 12V AC output and 60W maximum load suit the intended lighting setup.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EMCOD ML60S12AC-B Indoor Outdoor Magnetic AC Driver 60W 12VAC C2. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
