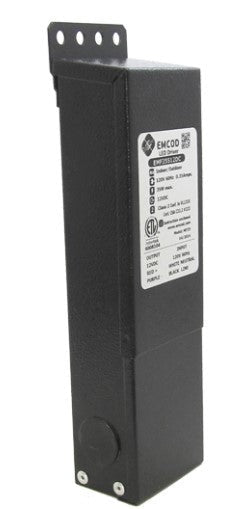

EMCOD ML50S24DC Indoor Outdoor Magnetic DC Driver 50W 24VDC Class 2

Product Overview

The EMCOD ML50S24DC is a magnetic hard-wire DC driver designed for low-voltage lighting circuits. It supplies a 24V DC Class 2 output with a maximum load of 50W and is engineered for indoor or outdoor installation in a NEMA 3R / IP24 rated enclosure.

Built with primary manual-reset circuit breaker protection, secondary protection for the DC output, an encapsulated bobbin for quiet operation, and a two-section bobbin that provides primary-to-secondary insulation.

Key Features

• 24V DC output, Class 2 designation
• 50W maximum load capacity
• Dimmable magnetic hard-wire design
• Primary manual-reset circuit breaker and secondary DC protection
• Two-section bobbin insulation and polyester resin encapsulation for quiet operation
• Outdoor enclosure rated NEMA 3R / IP24

What this driver does

Direct-answer: The ML50S24DC converts mains power to a regulated 24V DC Class 2 output for powering low-voltage lighting fixtures. It is intended for use with low-voltage LED, halogen, or xenon fixtures in indoor or outdoor lighting circuits.

• Designed as a hard-wire magnetic driver for low-voltage lighting
• Supplies a steady 24V DC output suitable for Class 2 loads

Output and load performance

Direct-answer: This model provides a 24V DC output with a maximum continuous load of 50W and carries a Class 2 designation.

• Output voltage: 24V DC
• Maximum load: 50W
• Class designation: Class 2

Protection and dimming controls

Direct-answer: The ML50S24DC includes onboard protection and supports dimming as a magnetic hard-wire power supply.

• Primary protection: manual-reset circuit breaker
• Secondary protection: provided for the DC output
• Dimming: magnetic-type dimmable driver (use compatible dimming controls)

Environmental rating and mounting considerations

Direct-answer: The unit is suitable for indoor or outdoor installations and is supplied in an enclosure rated NEMA 3R / IP24.

• Outdoor rating: NEMA 3R or IP24
• Use in covered outdoor locations and standard indoor installations

Physical dimensions

Direct-answer: Confirm the unit fits your enclosure or mounting location using the listed dimensions.

• Dimensions (manufacturer listing): Height = 7.00, Width = 2.11, Depth = 1.54 (units as provided by manufacturer data)

Before You Order

Confirm the model number and quantity required before ordering. Verify the listed output (24V DC), maximum load (50W), and enclosure rating meet your project's electrical and environmental requirements.

• Confirm compatibility of dimming control with magnetic drivers before installation.
• Provide the ML50S24DC SKU to your distributor or contractor when requesting a quote.
