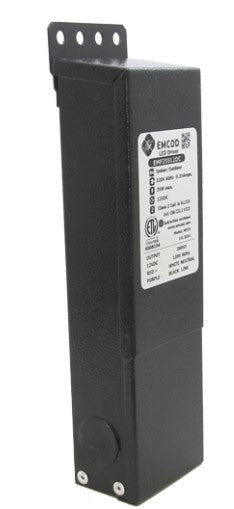

EMCOD ML50S12DC Indoor Outdoor Magnetic DC Driver 50W 12VDC Class 2

Product Overview

The EMCOD ML50S12DC is a magnetic, hard-wired DC driver for low-voltage lighting that provides up to 50W at a 12V DC output and is designated as Class 2.

Designed for indoor or outdoor locations, the unit includes a manual-reset primary circuit breaker, secondary protection for the DC output, two-section bobbin insulation, and polyester resin encapsulation. The enclosure is listed as NEMA 3R / IP24 in the provided product information.

Key Features

• 50W maximum load with 12V DC output (Class 2)
• Dimmable magnetic hard-wire power supply (magnetic-type driver)
• Primary manual-reset circuit breaker and secondary DC protection
• Two-section bobbin for primary-to-secondary insulation
• Polyester resin encapsulation
• Outdoor-capable enclosure rating: NEMA 3R / IP24

What this driver does

The ML50S12DC converts AC line power to a low-voltage 12V DC output for use with low-voltage lighting fixtures. It is a magnetic, hard-wired driver specified for applications requiring a Class 2 power-limited supply rated to 50W.

• Intended for low-voltage fixtures such as LED, halogen, or xenon (as commonly used with 12V supplies)
• Magnetic design supports dimming with compatible dimming controls; verify compatibility with your dimmer and fixtures

Power and output specifications

Key electrical limits and designation to use when selecting a driver.

• Maximum load: 50W
• Output: 12V DC
• Class designation: Class 2

Protections and construction

Features reported to be included that affect safety and operation.

• Primary manual-reset circuit breaker (integral)
• Secondary protection provided for the DC output
• Two-section bobbin provides insulation between primary and secondary windings
• Encapsulated with polyester resin (described for quieter operation)

Enclosure rating and installation context

Information on the unit's environmental rating and basic installation context.

• Enclosure rating listed as NEMA 3R / IP24 — suitable for locations matching those ratings
• Hard-wire installation; follow local electrical code and installer practices for mounting and termination

Dimensions and product identifiers

Physical size and ordering identifiers to confirm fit and procurement.

• Dimensions (as provided): H = 7, W = 2.11, D = 1.54
• SKU / Item Number: ML50S12DC
• UPC: 810064710827
• Series: ML/EM Magnetic Driver

Before You Order

Confirm the model and quantity before ordering and verify the 50W, 12V DC Class 2 rating matches your fixture wattage and local code requirements.

• This listing is for SKU ML50S12DC — confirm compatibility with your fixtures and dimming controls.
• Provide installation details to your electrician: hard-wire driver and enclosure rating; follow local electrical code.
