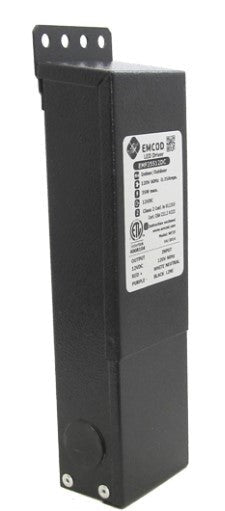

EMCOD ML50S12AC Indoor Outdoor Magnetic AC Driver 50W 12VAC C2

Product Overview

The EMCOD ML50S12AC is a hard-wire magnetic AC driver for low-voltage lighting fixtures. It provides 12V AC output and supports a maximum load of 50W.

This model is dimmable and has a C2 class designation. Its listed applications include halogen and xenon lighting, as well as AC landscape or architectural lighting circuits.

Key Features

• 50W maximum load with 12V AC output
• Dimmable magnetic hard-wire power supply
• Boost tap to compensate for voltage drop on long runs
• Primary manually reset circuit breaker
• Outdoor enclosure rated NEMA 3R or IP24

12V AC Output and 50W Maximum Load

The ML50S12AC supplies 12V AC and has a maximum load rating of 50W. It is identified for low-voltage lighting fixtures.

Dimmable Magnetic Driver Design

This hard-wire magnetic power supply is dimmable. Its AC design includes a boost tap intended to compensate for voltage drop on long runs.

The unit has a primary manually reset circuit breaker. Its two-section bobbin provides insulation between the primary and secondary sides, and polyester resin encapsulation is specified for quiet operation.

Lighting Applications and Enclosure Rating

Listed uses include halogen and xenon lighting, along with AC landscape or architectural lighting circuits. The outdoor enclosure is rated NEMA 3R or IP24.

Before You Order

Confirm that the lighting load uses 12V AC and does not exceed the driver's 50W maximum load.

• Confirm the model number and quantity required before ordering.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EMCOD ML50S12AC Indoor Outdoor Magnetic AC Driver 50W 12VAC C2. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
