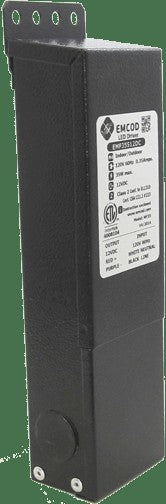

EMCOD ML35S12DC Indoor Outdoor Magnetic DC Driver 35W 12VDC Class 2

Product Overview

The EMCOD ML35S12DC is an indoor/outdoor magnetic DC driver for low-voltage lighting. It provides 12V DC output and supports a maximum load of 35W.

This Class 2 driver is dimmable and features a manually reset primary circuit breaker and secondary protection. Its enclosure is rated NEMA 3R or IP24.

Key Features

• 12V DC output with a 35W maximum load
• Dimmable magnetic hard-wire power supply
• Manually reset primary circuit breaker and standard secondary protection
• Encapsulated with polyester resin for quiet operation

12V DC Output and 35W Maximum Load

The ML35S12DC provides 12V DC output and has a maximum load of 35W. Its Class 2 designation is listed for this exact model.

Dimming and Circuit Protection

This magnetic hard-wire power supply is dimmable. It includes a manually reset primary circuit breaker and standard secondary protection for DC products.

• Two-section bobbin provides insulation between the primary and secondary sides.
• Polyester resin encapsulation is specified for quiet operation.

Enclosure Rating and Lighting Applications

The driver is identified for indoor and outdoor lighting circuits, with an enclosure rating of NEMA 3R or IP24. Listed fixture applications include low-voltage LED, halogen, and xenon fixtures.

Before You Order

Confirm that the 12V DC output and 35W maximum load match the lighting application.

• Confirm the model number and quantity required before ordering.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EMCOD ML35S12DC Indoor Outdoor Magnetic DC Driver 35W 12VDC Class 2. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
