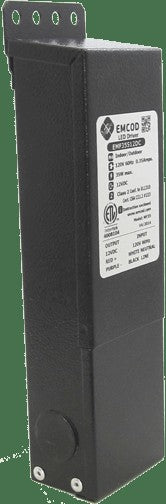

EMCOD ML20S12DC Indoor Outdoor Magnetic DC Driver 20W 12VDC Class 2

Product Overview

The EMCOD ML20S12DC is a 20W maximum-load magnetic DC driver with a 12V DC output and Class 2 designation. Its item number is ML20S12DC.

The catalog describes this dimmable, hard-wire power supply for low-voltage LED, halogen, and xenon fixtures, and lists it for indoor and outdoor lighting circuits.

Key Features

• 20W maximum load and 12V DC output
• Dimmable magnetic hard-wire power supply
• Primary manually reset circuit breaker and secondary protection are standard
• Two-section bobbin provides insulation between primary and secondary sides
• Polyester resin encapsulation is specified for quiet operation

12V DC Output and Maximum Load

The ML20S12DC provides 12V DC output and is rated for a maximum load of 20W. Its listed class designation is Class 2.

Dimming and Built-In Protection

This model is described as a dimmable magnetic hard-wire power supply. Standard protection features include a manually reset primary circuit breaker and secondary protection for DC products.

• A two-section bobbin provides insulation between the primary and secondary sides.
• The driver is encapsulated with polyester resin, which is specified for quiet operation.

Listed Fixture Uses and Enclosure Rating

The product listing identifies low-voltage LED, halogen, and xenon fixtures, as well as indoor and outdoor lighting circuits, as uses. It lists the outdoor enclosure rating as NEMA 3R or IP24.

Dimensions

The listed dimensions are H = 7, W = 2.11, and D = 1.54. No unit of measurement is specified.

Before You Order

Confirm that the ML20S12DC's 12V DC output and 20W maximum load match the requirements of your lighting setup.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EMCOD ML20S12DC Indoor Outdoor Magnetic DC Driver 20W 12VDC Class 2. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
