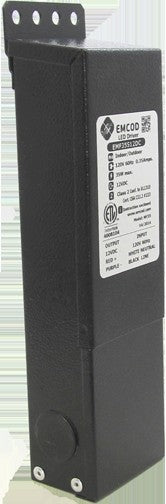

EMCOD ML20S12AC Indoor Outdoor Magnetic AC Driver 20W 12VAC C2

Product Overview

The EMCOD ML20S12AC is an indoor/outdoor magnetic AC driver for low-voltage lighting fixtures. It provides 12V AC output and supports a maximum load of 20W.

This model is listed for halogen and xenon lighting, as well as AC landscape or architectural lighting circuits. Its listed features include dimmable operation, a boost tap, a manually reset primary circuit breaker and a polyester-resin encapsulated design.

Key Features

• 12V AC output with a maximum load of 20W
• Dimmable magnetic hard-wire power supply
• Boost tap to compensate for voltage drop on long runs
• Manually reset primary circuit breaker
• Outdoor enclosure rating listed as NEMA 3R or IP24

12V AC Output and 20W Maximum Load

The ML20S12AC supplies 12V AC and has a listed maximum load of 20W. It is intended for low-voltage lighting fixtures, including the listed halogen, xenon, landscape and architectural lighting applications.

Magnetic Driver Features

This dimmable magnetic hard-wire power supply includes a boost tap intended to compensate for voltage drop on long runs. A manually reset primary circuit breaker is standard. The two-section bobbin provides insulation between the primary and secondary sides, and the unit is encapsulated with polyester resin for quiet operation.

Indoor/Outdoor Enclosure and Dimensions

The product is identified as an indoor/outdoor magnetic AC driver. Its outdoor enclosure rating is listed as NEMA 3R or IP24. Listed dimensions are H = 7, W = 2.11 and D = 1.54; no measurement unit is specified.

Before You Order

Confirm that the lighting fixtures require 12V AC and that their combined load does not exceed 20W.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EMCOD ML20S12AC Indoor Outdoor Magnetic AC Driver 20W 12VAC C2. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
