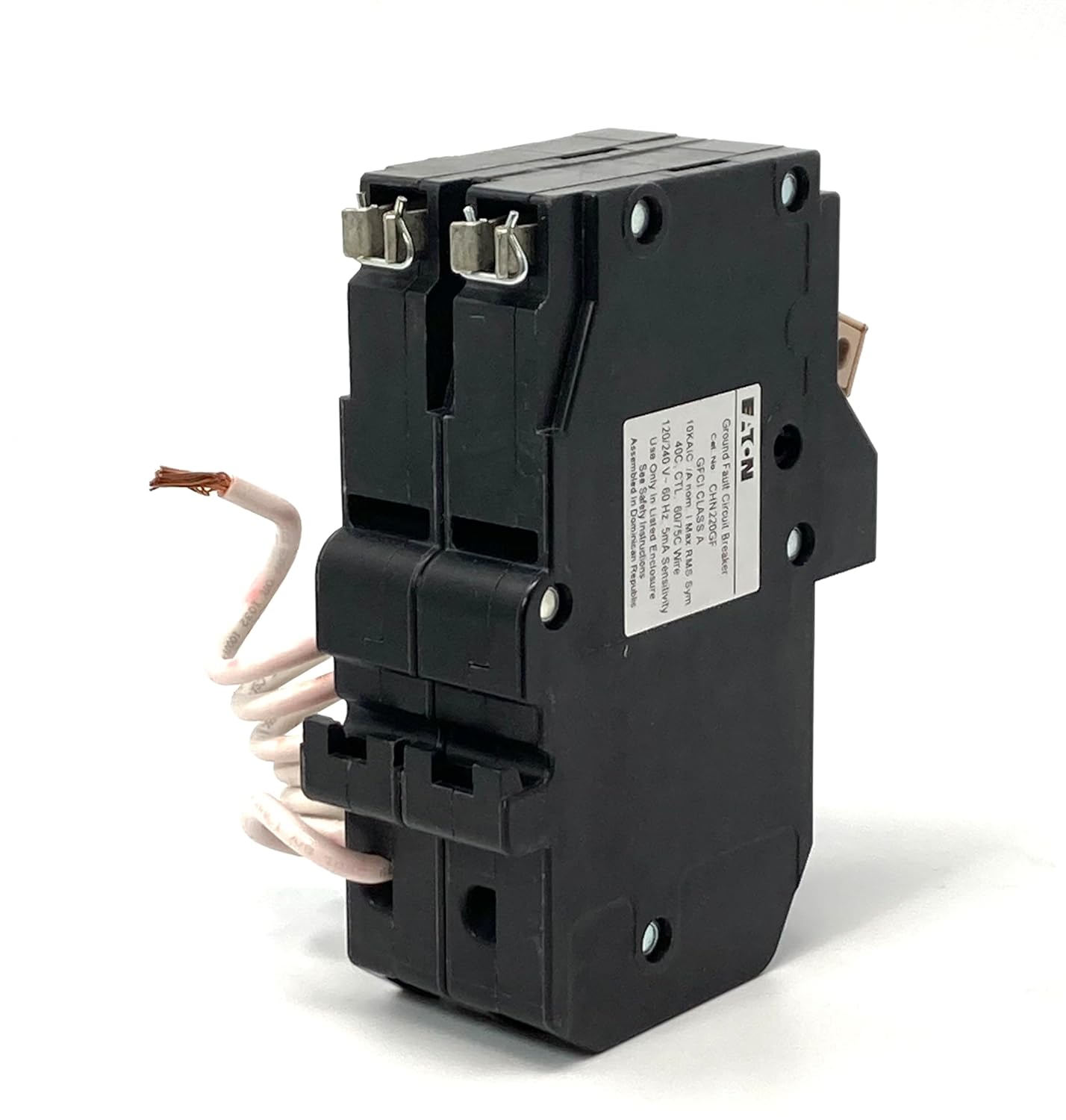

CHN230GF - Eaton 2-Pole 30A 120/240V CH Series Ground Fault Circuit Breaker, Plug-In Mount, 10kA Interrupt, Thermal Magnetic Trip, UL Listed

Product Overview

The Eaton CHN230GF is a CH series 2-pole ground-fault circuit breaker rated 30 A for 120/240 V systems. It combines a thermal-magnetic trip mechanism with ground-fault sensing and is a plug-in mount device with a 10 kA interrupting rating and UL listing.

Request a quote for pricing and availability and confirm model and quantity when ordering.

Key Features

• 2-pole thermal-magnetic ground-fault circuit breaker
• 30 A rated current at 120/240 V AC
• Plug-in mount — CH series form factor
• 10 kA interrupting rating
• UL Listed

Function and protection

The CHN230GF provides combined thermal-magnetic overcurrent protection and ground-fault detection in a single 2-pole device. It trips on overload and high-current fault conditions and responds to ground-fault currents.

• Overcurrent protection: thermal-magnetic trip
• Integrated ground-fault sensing

Electrical ratings and performance

Use this breaker in 120/240 V AC systems where a 30 A two-pole ground-fault device is required. The CHN230GF is specified with a 10 kA interrupting rating.

• Rated current: 30 A
• Rated voltage: 120/240 V AC (2-pole)
• Interrupting capacity: 10 kA

Mounting and physical configuration

The CHN230GF uses Eaton's CH series plug-in mount form factor intended for compatible CH-type load centers or panels. Confirm panel compatibility before ordering.

• Mounting: plug-in (CH series form factor)
• Configuration: 2-pole unit

Certifications and listing

This model is described as UL listed.

• UL Listed

Before You Order

Confirm the model number (CHN230GF) and quantity required before ordering.

• Verify your panel accepts Eaton CH series plug-in breakers
• Confirm a 30 A, 2-pole ground-fault breaker is appropriate for your circuit
