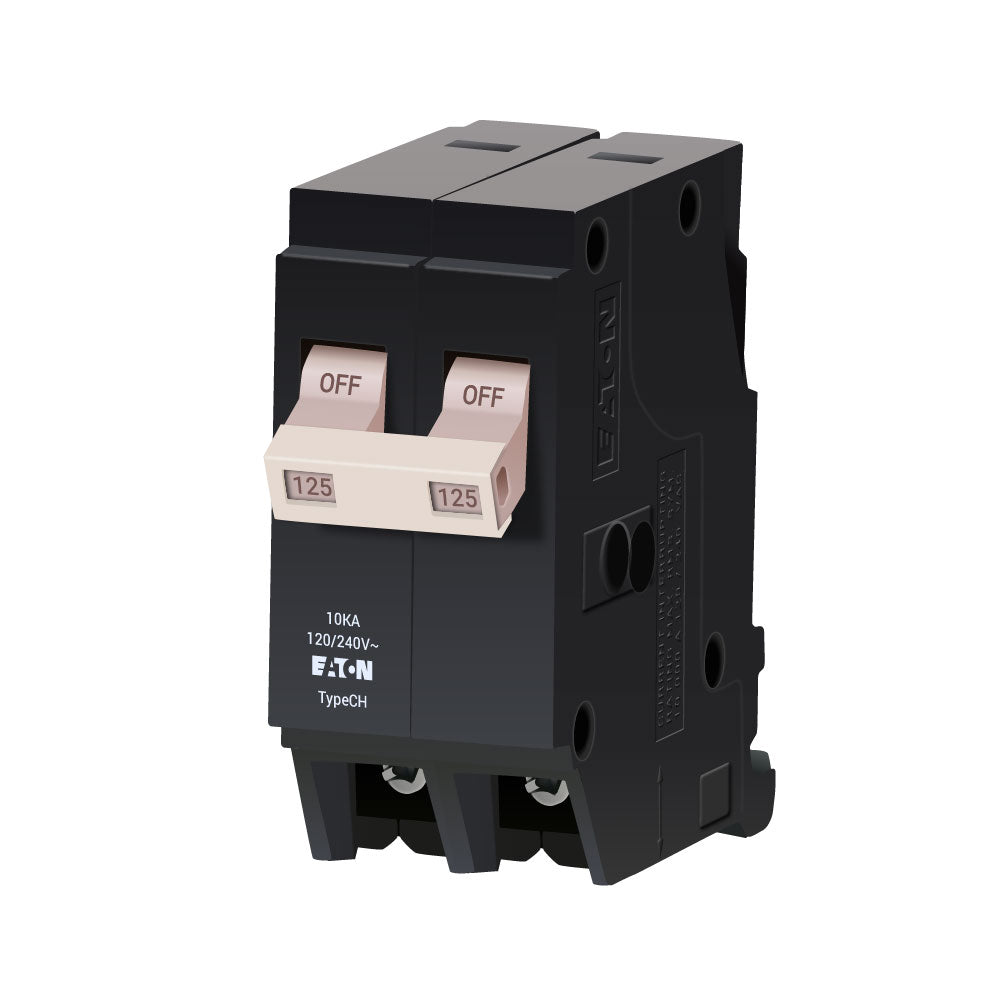

CH2125 - Cutler Hammer 125 Amp 2 Pole 120/240V Thermal Magnetic Circuit Breaker Plug-On Type CH Frame

Product Overview

The CH2125 is a Cutler Hammer (Eaton) CH-frame, 2-pole thermal-magnetic circuit breaker rated 125 amps for 120/240V systems. It is a plug-on type intended for use in compatible Eaton/Cutler Hammer panelboards and load centers.

This listing is for the single SKU CH2125 in new condition. Request a quote for pricing and availability.

Key Features

• 125 A rated current
• 2-pole thermal-magnetic protection for 120/240V circuits
• CH frame, plug-on mounting
• Manufacturer: Eaton (Cutler Hammer line)

What this breaker does

The CH2125 provides overcurrent protection using a thermal-magnetic trip mechanism. It is a two-pole breaker rated for 125 A on 120/240V circuits, combining thermal (overload) and magnetic (short-circuit) trip elements.

• Protects two poles simultaneously for multi-wire branch circuits
• Thermal-magnetic trip provides overload and short-circuit response

Typical applications

The CH2125 is commonly used where 125 A two-pole protection is required on 120/240V circuits. Confirm load requirements and local code when selecting a breaker for a specific application.

• Feeder protection to subpanels where a 125 A breaker is appropriate
• Larger branch circuits sized for a 125 A breaker
• General branch-circuit protection when matched to load and code

Panel compatibility and mounting

This is a CH-frame, plug-on type breaker intended for panels and load centers designed to accept CH-frame plug-on breakers. Verify that your panelboard model accepts CH-frame breakers before ordering.

• Plug-on mounting for compatible Eaton/Cutler Hammer bus assemblies
• Confirm panel model and bus type for compatibility

Technical specifications

Key factual specifications for selection and matching to system requirements are listed below.

• Manufacturer: Eaton (Cutler Hammer line)
• Model / SKU: CH2125
• Frame: CH
• Poles: 2
• Rated current: 125 A
• Voltage: 120/240 V
• Trip type: Thermal-magnetic
• Mounting: Plug-on
• Condition: New

Before You Order

Verify that your panelboard accepts CH-frame plug-on breakers and that a 125 A two-pole breaker is appropriate for your circuit and local code.

• Confirm panel model and bus compatibility for CH-frame plug-on breakers
• Verify quantity and model number (CH2125) before ordering

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for CH2125 - Cutler Hammer 125 Amp 2 Pole 120/240V Thermal Magnetic Circuit Breaker Plug-On Type CH Frame. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
