Diode LED VALENT RGBW Tape Light Terminal Block Splice Connector, 12mm, Tape-to-Wire, 96 in Splice Wire, 25 Pack (DI-TB-RGBW-96SPL-TTW-25)

Product Overview

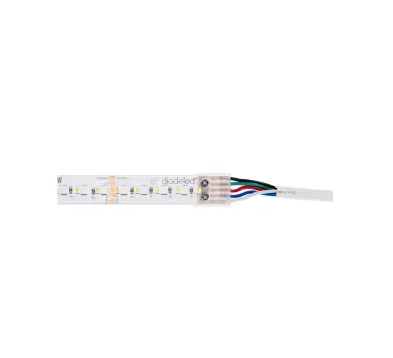

The Diode LED DI-TB-RGBW-96SPL-TTW-25 is a solderless terminal block for making tape-to-wire connections on 12 mm VALENT RGBW LED tape. It is supplied as a 25‑pack for multi‑run installations and repairs.

The connector has a compact body sized to fit shallow channels and returns and includes a 96 in. bare lead (20/5 AWG UL 2464) with strain relief. It is specified for indoor/damp locations and a 24 V system.

Key Features

• Solderless tape‑to‑wire terminal block for 12 mm LED tape
• 96 in. bare lead, 20/5 AWG UL 2464 wire with strain relief
• Compact body dimensions: 0.64 × 0.56 × 0.30 in (L × W × H)
• Specified for 24 V with a maximum load of 4 A
• Supplied as a 25‑pack
• Intended for indoor / damp location use; 5‑year limited warranty

What this connector does

This terminal block provides a solderless splice to convert 12 mm VALENT RGBW tape contacts to field wiring. It facilitates tape‑to‑wire terminations for feeding power and making repairs without soldering.

• Tape‑to‑wire termination: insert 12 mm tape into the terminal block and secure the wire lead.
• Typical uses include feeding power to 12 mm tape runs and making in‑field repairs in interior low‑voltage installations.

Compatible tape and electrical limits

Use this connector only with 12 mm VALENT RGBW tape and within the manufacturer‑specified electrical limits.

• Compatible tape width: 12 mm (VALENT RGBW)
• Rated voltage: 24 V
• Maximum load: 4 A at 24 V
• Lead wire: 96 in. bare lead, 20/5 AWG UL 2464 with strain relief

Size and physical design

The connector's compact footprint is intended to fit in shallow channels and tight returns where larger connectors might not fit.

• Dimensions (L × W × H): 0.64 × 0.56 × 0.30 in
• Compact form factor for limited‑space installations

Installation notes and environment

The product is specified for indoor and damp location use. Install in accordance with applicable national and local electrical codes. The manufacturer provides a 5‑year limited warranty for the terminal block.

• Environment: Indoor / Damp Location
• Ambient temperature range: -20 to 50°C (-4 to 122°F)
• Follow applicable electrical codes and wiring practices; use appropriate wire type where required
• Warranty: 5‑year limited warranty (refer to manufacturer for details)

Before You Order

Confirm the model and that you are working with 12 mm VALENT RGBW tape before ordering; this item is sold as a 25‑pack.

• Verify your system voltage (24 V) and that each run does not exceed the connector’s 4 A rating.
• Confirm the 96 in. 20/5 AWG bare lead with strain relief and the connector’s compact dimensions will meet your installation needs.
