Diode LED Plug-In Adapter - Commercial Grade Class 2 adapter, 12V 60W, Black (DI-PA-12V60W-CL2-B-CG)

Product Overview

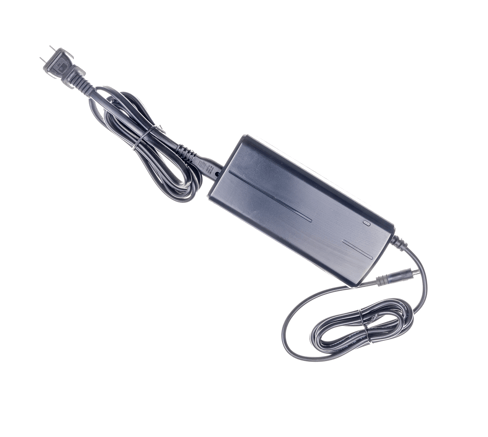

The Diode LED DI-PA-12V60W-CL2-B-CG is a commercial-grade plug‑in LED driver supplying regulated 12 VDC constant-voltage output up to 60 W. It is UL Listed to ANSI/UL 1310 as a Class 2 power unit and rated for indoor/damp locations (IP20).

The black, fanless adapter supports on/off and PWM dimming, includes internal protections, and ships with a 60" AC cable (with a 1–15P plug) and a 60" DC barrel output (2.1 × 5.5 mm).

Key Features

• 12 VDC constant-voltage output, 60 W maximum load
• UL Listed Class 2 (ANSI/UL 1310); cULus listing (UL # E477211)
• Fanless convection cooling with protections for short circuit, overcurrent, overvoltage, and overtemperature (auto-reset hiccup)
• Supports PWM dimming and on/off control
• Indoor / damp location (IP20); 3-year limited warranty

What this driver does

The DI-PA-12V60W-CL2-B-CG provides regulated constant-voltage 12 VDC power for low-voltage LED tape and fixtures up to a 60 W total load. It is intended for dedicated LED runs where a stable 12 V supply and Class 2 output are required.

• Constant-voltage output suitable for 12 V LED tape and compatible fixtures
• Rated maximum load: 60 W
• Intended for indoor and damp-location installations (IP20)

Electrical performance and protections

The adapter accepts 100–240 VAC, 50/60 Hz input, provides high efficiency, and includes auto-reset protection modes for fault conditions.

• Input: 100–240 VAC, 50–60 Hz
• Efficiency: 93%; Power Factor ≥0.9 (manufacturer specification)
• Protections: short circuit, overcurrent, overvoltage, overtemperature (auto-reset hiccup)
• Dimming: supports PWM dimming and on/off control

Connections and recommended usage notes

The unit ships with a 60" AC cable ending in a 1–15P plug and a 60" DC output lead with a 2.1 × 5.5 mm male barrel connector. Confirm the total connected LED load does not exceed 60 W and provide a dedicated feed for each maximum run as required by the manufacturer.

• AC lead: 60" cable with NEMA 1–15P plug
• DC lead: 60" male barrel connector (2.1 × 5.5 mm)
• Do not exceed the 60 W output when connecting LED tape or fixtures
• Manufacturer documentation lists compatible tape families; verify tape model and wattage before connecting

Physical size and environment

Compact, fanless design uses free‑air convection for cooling. Install where ambient and mounting conditions meet the specified temperature and humidity limits and where the unit will not be exposed to wet conditions.

• Dimensions (L × W × H): 4.6 × 2 × 1.25 in. (117 × 51 × 32 mm)
• Operating temperature: -4 to 122°F (-20 to 50°C)
• Storage/ambient range referenced in manufacturer materials; consult spec sheet for storage limits
• Working humidity: 5–95% RH non‑condensing
• IP rating: IP20 (indoor / damp locations only)

Certifications and warranty

This model is UL Listed to ANSI/UL 1310 as a Class 2 power unit and carries cULus listing (UL # E477211). The manufacturer provides a 3‑year limited warranty; refer to the manufacturer's warranty for full terms and exclusions.

• UL Listed (ANSI/UL 1310) — Class 2 power unit
• cULus listing: UL # E477211
• 3-year limited warranty

Before You Order

Verify the total connected LED load does not exceed 60 W and that each maximum run has a dedicated feed from this driver. Use copper wiring rated per local code and the manufacturer's recommendations.

• Confirm connector type (2.1 × 5.5 mm barrel) or plan for compatible adapter/accessory
• This driver is for indoor/damp locations (IP20); do not use in wet outdoor locations unless the connected product is rated for that environment
• Installation should follow national and local electrical codes and be performed by a qualified installer
