Diode LED DMX512 5-Channel Decoder with RDM and Digital Display, controls LED TW, RGB, RGBW and RGBWW lighting fixtures (DI-DMX-DEC-5)

Product Overview

The Diode LED DI-DMX-DEC-5 is a five-channel DMX512 decoder for compatible low-voltage LED lighting. It supports 12–24 VDC lighting and can be used as a standalone or master controller, or as a companion decoder.

A digital display supports DMX address adjustments. The specified maximum drive capacity per receiver is 96 W at 12 V or 192 W at 24 V.

Key Features

• Five channels, rated at 8 A per channel
• DMX512 input and digital display for address adjustments
• Compatible with 12–24 VDC LED lighting and 4–6-wire light engines
• Can be used as a standalone or master controller, or as a companion decoder
• RJ45 and 5-pin XLR input and output connection types

DMX512 Control and Decoder Operation

The DI-DMX-DEC-5 receives DMX512 control signals and provides five-channel output for compatible low-voltage LED lighting. It can function as a standalone or master controller, or as a companion decoder in a multi-decoder setup.

Its digital display supports DMX address adjustments. The decoder is compatible with 4–6-wire light engines.

Voltage, Channels, and Load Capacity

The decoder is specified for 12–24 VDC LED lighting, with five channels rated at 8 A per channel. Its stated maximum drive capacity per receiver is 96 W at 12 V or 192 W at 24 V.

• Input and output voltage: 12–24 VDC
• Channels: 5 × 8 A
• Maximum stated capacity: 96 W at 12 V or 192 W at 24 V per receiver

Connections and Dimensions

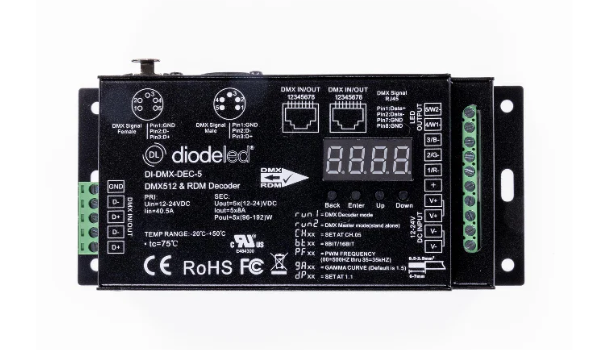

The DI-DMX-DEC-5 has RJ45 and 5-pin XLR connection types for both input and output. It measures 6.45 × 2.87 × 1.5 inches (164 × 73 × 39 mm), length × width × height.

• Input connection types: RJ45 and 5-pin XLR
• Output connection types: RJ45 and 5-pin XLR
• Maximum interconnected units: 10

Environment and Installation

The decoder is listed for indoor/damp locations and has an IP20 rating. It is intended to be installed and serviced by a qualified, licensed electrician in accordance with national and local electrical codes.

• Use copper wiring rated for at least 176°F (80°C).
• Select wiring with appropriate voltage-drop and amperage ratings for the system.

Before You Order

Confirm that your LED lighting operates at 12–24 VDC and is compatible with the decoder’s five-channel output and stated per-receiver capacity.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Diode LED DMX512 5-Channel Decoder with RDM and Digital Display, controls LED TW, RGB, RGBW and RGBWW lighting fixtures (DI-DMX-DEC-5). For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
