Diode LED Accessory Pack, WAVEFORM, Aluminum, 2 open/closed end cap set, 4 mounting clips (DI-CPCHB-WF-ACC)

Product Overview

Accessory pack for the Diode LED WAVEFORM aluminum channel (DI-CPCHB-WF-ACC). Includes one open end cap, one closed end cap, and four surface mounting clips sized to the WAVEFORM profile.

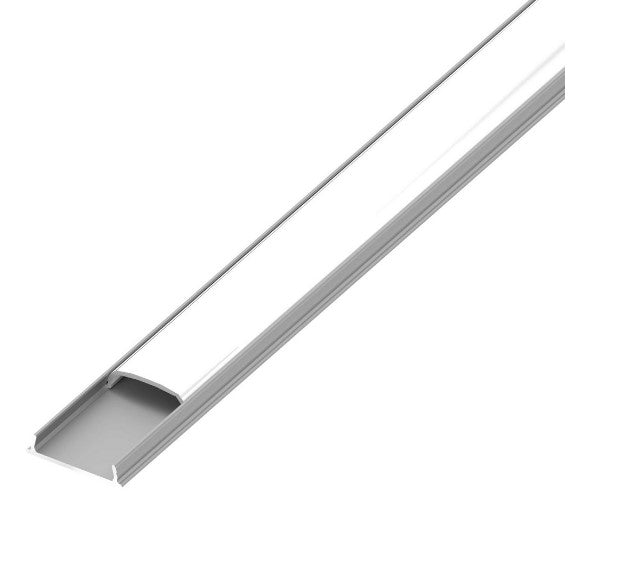

WAVEFORM is a low-profile aluminum extrusion that fits LED tape up to 12 mm wide and accepts compatible lenses and mounting hardware for finished linear installations.

Key Features

• Includes 1 open end cap, 1 closed end cap, and 4 surface mounting clips sized for the WAVEFORM channel
• Aluminum accessory components that mate to the WAVEFORM channel
• Compatible with WAVEFORM lenses and channel components
• Sized for use with LED tape up to 12 mm wide

What this accessory pack does

The DI-CPCHB-WF-ACC accessory pack supplies finishing and mounting hardware for the Diode LED WAVEFORM channel. It provides a clean end finish (one open and one closed cap) and four surface mounting clips for securing a cut-to-length channel run.

• End caps: 1 open, 1 closed (matched to the WAVEFORM profile)
• Mounting clips: 4 surface clips sized for the WAVEFORM channel

Channel and tape compatibility

The WAVEFORM channel accepts LED tape up to 12 mm wide; this pack is intended for use with that channel family and compatible WAVEFORM lenses and components.

• Supported tape width: up to 12 mm
• Designed to pair with WAVEFORM lenses and channel components

Profile dimensions and mounting details

Use the WAVEFORM channel specification sheet for detailed planning and to confirm fit. The WAVEFORM profile is low-profile and suitable for installations requiring a compact extrusion.

• WAVEFORM profile dimensions: height 0.3 in; width 0.71 in; interior depth 0.25 in; interior width 0.49 in
• Accessory pack supplies surface mounting clips sized to the WAVEFORM profile

Typical applications

The accessory pack is intended to finish and mount small linear LED installations using the WAVEFORM channel. Common uses include accent and cabinet-related lighting and edge illumination in displays and millwork.

• Under-cabinet and above-cabinet accent lighting
• Cove, toe-kick, and perimeter lighting
• Shelf, display, and millwork edge lighting

Certifications and warranty notes

Refer to the manufacturer specification sheet for full certification and warranty details. The WAVEFORM channel family is offered with a 5 Year Limited Warranty; accessory-specific coverage may differ. Assemblies meet listed certifications when installed with compatible, UL-listed tape light and compliant installation practices.

• WAVEFORM family: 5 Year Limited Warranty (see manufacturer for full terms)
• Meets required certifications when installed with compatible UL-listed tape light (refer to manufacturer specification sheet)

Before You Order

Confirm the WAVEFORM channel model and that your LED tape is 12 mm or narrower before ordering.

• Verify channel model DI-CPCHB-WF and tape width (≤ 12 mm).
• Clips and end caps are sized for the WAVEFORM extrusion and intended for field assembly with cut-to-length channels.
• For electrical and code compliance questions, consult a licensed electrician and the manufacturer specification sheet.
