Diode LED Channel Bundle, WAVEFORM, 48 in, Frosted Lens, 1 open/closed end cap set, 2 mounting clips (DI-CPCHB-WF-48)
Description
Product Overview

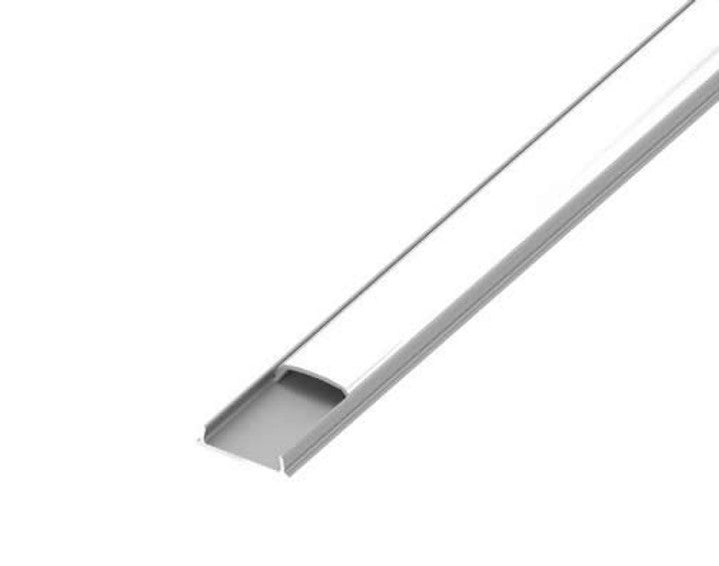

The Diode LED DI-CPCHB-WF-48 is a 48 in WAVEFORM aluminum channel bundle for housing compatible LED tape light. It includes a frosted lens, two surface mounting clips, and one open and one closed end cap.
The low-profile channel fits tape light up to 12 mm wide. The lens specifications list a 120° beam angle, 20% light loss, and a −40K CCT shift.
Key Features
- 48 in aluminum channel with frosted lens
- Includes two surface mounting clips and one open and one closed end cap
- Fits LED tape light up to 12 mm wide
- Five-year limited warranty; additional accessories are excluded
What’s Included in the DI-CPCHB-WF-48 Bundle
This Diode LED bundle includes a 48 in WAVEFORM aluminum channel, a frosted lens, two surface mounting clips, and one open and one closed end cap. The channel houses compatible LED tape light.
Tape Fit and Frosted Lens Details
The WAVEFORM channel fits tape light up to 12 mm wide. The classic frosted lens has a listed 120° beam angle, 20% light loss, and a −40K CCT shift. Diffusion depends on the tape light used; check the tape model’s compatibility and diffusion information when selecting components.
WAVEFORM Channel Dimensions
The 48 in aluminum profile measures 0.3 in high by 0.71 in wide. Its interior measures 0.25 in deep by 0.49 in wide, and the channel height without the cover is 0.2 in.
Applications for the WAVEFORM Channel
Common applications include under- or above-cabinet accent lighting, coves, toe kicks, shelves, displays, and millwork.
Before You Order
Confirm the LED tape light is compatible with the WAVEFORM channel and no wider than 12 mm.
Ordering from Lumera Electric
Check the purchasing options shown on the Lumera Electric product page for Diode LED Channel Bundle, WAVEFORM, 48 in, Frosted Lens, 1 open/closed end cap set, 2 mounting clips (DI-CPCHB-WF-48). For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
Specifics
| Brand | Diode LED |
|---|---|
| Model / SKU | DI-CPCHB-WF-48 |
| Channel series | WAVEFORM |
| Channel Length | 48 in |
| Material | Aluminum |
| Lens | Classic frosted |
| Maximum tape light width | 12 mm |
| Channel dimensions (H × W) | 0.3 × 0.71 in |
| Interior dimensions (depth × width) | 0.25 × 0.49 in |
| Height without cover | 0.2 in |
| Listed beam angle | 120° |
| Listed lens light loss | 20% |
| Listed CCT shift | −40K |
| Included hardware and end caps | Two surface mounting clips; one open and one closed end cap |
| Warranty | Five-year limited warranty; additional accessories excluded |
