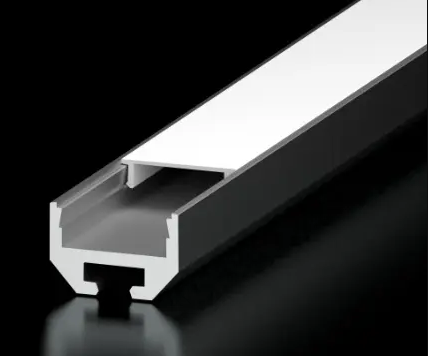

Diode LED Channel Bundle, SQUARE, 96 in, Premium Diffusion Lens, 2 open end cap, 2 closed end cap, 8 mounting clips (DI-CPCHB-SQ-PD-96)

Product Overview

The Diode LED DI-CPCHB-SQ-PD-96 is a 96-inch aluminum LED channel bundle that mounts low-voltage LED tape to create a finished linear lighting run with reduced visible LED dotting.

The bundle includes a premium diffusion lens, two open end caps, two closed end caps, and eight mounting clips; the aluminum extrusion serves as the channel body.

Key Features

• 96 in aluminum extrusion sized for linear runs and cut-to-length installations
• Premium diffusion lens to reduce visible LED point sources
• Includes 2 open end caps, 2 closed end caps, and 8 mounting clips
• Aluminum construction

Function and purpose

This aluminum extrusion is designed to house low-voltage LED tape and provide a finished linear lighting appearance. The premium diffusion lens reduces the visibility of individual LEDs to produce a more continuous light line.

• Houses compatible-width LED tape—verify tape width against the channel opening before installation
• Diffusion lens reduces LED dotting for a smoother appearance

Intended applications

The channel bundle is suitable for applications where a finished linear lighting element is desired and the 96 in length fits the project layout.

• Under-cabinet and above-cabinet accent lighting
• Cove, toe-kick, and perimeter lighting
• Shelf, display, and millwork edge lighting

Dimensions, materials, and finish

Review the physical details to confirm compatibility with your installation and LED tape selection.

• Length: 96 in
• Material: Aluminum
• Finish: Aluminum
• Lens type: Premium Diffusion

Mounting and handling notes

The product is supplied as a bundle with mounting hardware for surface attachment; plan handling and support for the long extrusion during installation.

• Included: 8 mounting clips, 2 open end caps, 2 closed end caps, premium diffusion lens
• Support the extrusion at its clip points to keep long runs straight
• The extrusion can be cut to length to fit custom cabinet or casework dimensions

Before You Order

Verify LED tape width fits the channel opening and plan for handling and delivery of a 96 in extrusion.

• Check tape width and adhesive/backing clearance before installation
• Plan mounting clip spacing to support the 96 in extrusion

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Diode LED Channel Bundle, SQUARE, 96 in, Premium Diffusion Lens, 2 open end cap, 2 closed end cap, 8 mounting clips (DI-CPCHB-SQ-PD-96). For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
