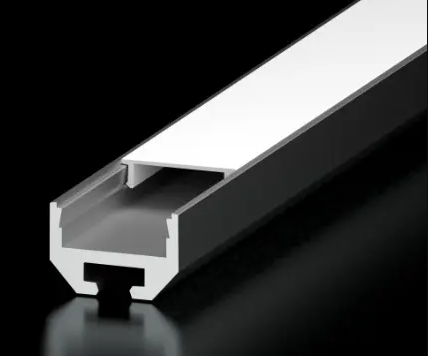

Diode LED Channel Bundle, SQUARE, 96 in, Architectural Frosted Lens, 2 open end cap, 2 closed end cap, 8 mounting clips (DI-CPCHB-SQ-FRT-96)

Product Overview

The Diode LED DI-CPCHB-SQ-FRT-96 is a 96 in square aluminum channel bundle for housing and finishing low-voltage LED tape light. It includes an architectural frosted lens, 2 open end caps, 2 closed end caps and 8 mounting clips.

The frosted lens diffuses the LEDs into a continuous line with reduced dotting. The aluminum channel also serves as a heat sink to help draw heat away from the tape.

Key Features

• 96 in square aluminum LED channel with architectural frosted lens
• Includes 2 open end caps, 2 closed end caps and 8 mounting clips
• Frosted lens diffuses LED tape light into a continuous line with reduced dotting
• Aluminum body helps draw heat away from LED tape

Channel function and frosted lens

The DI-CPCHB-SQ-FRT-96 houses and finishes low-voltage LED tape light in a 96 in aluminum extrusion. Its architectural frosted lens diffuses the LEDs into a continuous line with reduced dotting.

The aluminum body serves as a heat sink to help draw heat away from the tape. The extrusion is cut-to-length for custom cabinet and casework dimensions.

Included components

This bundle includes the channel and the following components:

• 1 architectural frosted lens
• 2 open end caps
• 2 closed end caps
• 8 mounting clips

Common lighting applications

The channel is used for applications such as under-cabinet and above-cabinet accent lighting, cove and toe-kick lighting, perimeter lighting, and shelf, display or millwork edge lighting.

Before You Order

Verify LED tape width against the channel opening.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Diode LED Channel Bundle, SQUARE, 96 in, Architectural Frosted Lens, 2 open end cap, 2 closed end cap, 8 mounting clips (DI-CPCHB-SQ-FRT-96). For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
