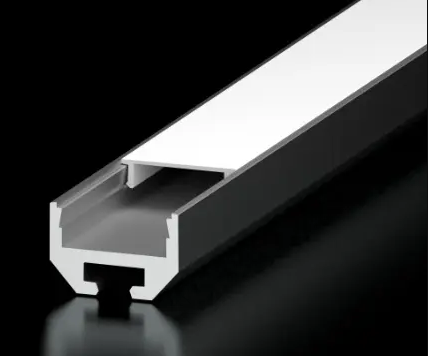

Diode LED Channel Bundle, SQUARE, 96 in, Black Lens, 2 open end cap, 2 closed end cap, 8 mounting clips (DI-CPCHB-SQ-BL-96)

Product Overview

Aluminum LED channel bundle for low-voltage LED tape in a 96 in (8 ft) length. The extrusion houses and provides a finished appearance for LED tape.

Supplied as a complete mounting kit that includes the black-finish channel, black lens, 2 open end caps, 2 closed end caps, and 8 mounting clips for a ready-to-mount linear section.

Key Features

• Aluminum body that helps manage heat from mounted LED tape
• Complete bundle: channel, black lens, two open end caps, two closed end caps, and eight mounting clips
• Cut-to-length aluminum extrusion suitable for custom cabinet, shelf, or display installations
• Square profile for linear mounting in under-cabinet, cove, shelf, and millwork applications

What this channel does

The DI-CPCHB-SQ-BL-96 is an aluminum LED channel bundle designed to house and finish low-voltage LED tape. The aluminum extrusion provides a finished appearance and helps manage heat from the mounted tape.

• Provides a clean, finished edge for exposed LED tape
• Aluminum construction assists with passive thermal management of the tape

Where to use it

This square-profile channel is intended for linear accent and task lighting installations. Typical applications include under-cabinet and above-cabinet lighting, cove and toe-kick illumination, shelf and display lighting, and millwork edge lighting.

• Suitable for cabinetry, displays, and built-in fixtures where a 96 in linear section is required
• Use with LED tape that matches the channel opening width (verify tape width prior to installation)

Handling and mounting notes

The product is supplied as a complete bundle ready for mounting. Because the extrusion is 96 in long, handle and transport accordingly and support the channel at its mounting clip points to keep long runs straight.

• Includes eight mounting clips for attachment along the run
• Confirm LED tape width compatibility with the channel opening before installation
• Account for the 96 in length during delivery, handling, and installation

Key specifications

Use these core attributes to confirm fit for your project.

• Brand: Diode LED
• Model / SKU: DI-CPCHB-SQ-BL-96
• Product type: LED Channel Bundle
• Material: Aluminum
• Finish: Black
• Length: 96 in
• Bundle contents: channel, black lens, 2 open end caps, 2 closed end caps, 8 mounting clips

Before You Order

Verify LED tape width against the channel opening and confirm the 96 in length works for your installation.

• Verify LED tape width compatibility with the channel opening
• Plan for handling and transport of the 96 in extrusion

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Diode LED Channel Bundle, SQUARE, 96 in, Black Lens, 2 open end cap, 2 closed end cap, 8 mounting clips (DI-CPCHB-SQ-BL-96). For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
