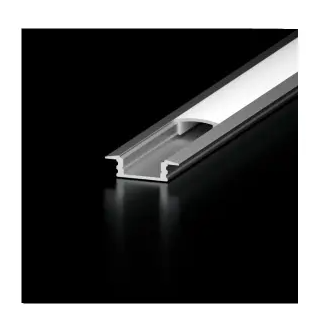

Diode LED Channel Bundle, SHORT RECESSED, 96 in, Aluminum, Frosted Cover, 2 open end caps, 2 closed end caps (DI-CPCHB-SHREC-96AL)

Product Overview

Aluminum recessed LED channel bundle for low-voltage LED tape; model DI-CPCHB-SHREC-96AL measures 96 inches and includes a classic frosted lens and end caps.

Short-depth, flush-mount profile intended to protect tape, provide thermal mass, and produce a diffused linear appearance when paired with compatible tape light.

Key Features

• 96 in aluminum extrusion sized for recessed/flush installations
• Classic frosted lens for diffusion and reduced LED dotting (manufacturer notes ~20% light loss)
• Bundle includes: frosted lens, 4 mounting clips, 2 open end caps, 2 closed end caps
• Aluminum body provides thermal mass to assist heat dissipation
• Short-depth profile (H 0.31 in, W 0.98 in) for low-profile mounting
• 5 Year Limited Warranty (per manufacturer terms)

What this channel does

The DI-CPCHB-SHREC-96AL is a short-depth recessed aluminum channel bundle intended to house and protect low-voltage LED tape and to produce a more uniform linear appearance when used with a compatible tape light.

• Protects LED tape from handling and mechanical damage
• Aluminum extrusion provides thermal mass to assist heat dissipation from the tape
• Frosted lens diffuses LED points into a continuous-looking line

Dimensions and mounting

Use these dimensions and included mounting clips to plan rough-in and support spacing for a recessed, low-profile installation.

• Overall length: 96 in
• Profile height (H): 0.31 in; profile width (W): 0.98 in
• Interior depth (ID): 0.21 in; interior width (IW): 0.46 in
• Cut-out width (CO): 0.69 in
• Includes 4 mounting clips; support the extrusion at clip points to keep long runs straight

Tape light compatibility

The manufacturer lists this channel as compatible with a range of Diode LED tape families. Verify the chosen tape's physical width and UL listing status (if required) before ordering.

• Manufacturer compatibility list includes multiple Diode LED tape families (refer to the specification sheet for exact model matches)
• Order channels and components for field assembly; confirm the tape selected is compatible with the channel interior dimensions

Diffusion and optical performance

The supplied classic frosted lens reduces visible LED dotting and alters optical characteristics; manufacturer data quantifies expected effects.

• Beam angle with the lens: 120° (manufacturer value)
• Approximate light loss with the classic frosted lens: 20% (manufacturer value)
• Manufacturer notes a CCT shift guidance of ±40K

Certifications and warranty

Refer to the manufacturer's documentation for full certification and warranty details applicable to your installation and selected tape light.

• Meets listed certifications when installed with compatible UL Listed tape light (manufacturer references UL standards/listings)
• 5 Year Limited Warranty (see manufacturer terms for details)
• IP20 noted on the specification sheet; environmental suitability depends on the installed light engine

Before You Order

Verify the LED tape width fits the channel interior and confirm the mounting/recess depth prior to ordering.

• Confirm available recess depth for the 0.31 in profile height
• Account for handling and delivery of a 96 in extrusion and plan support at clip points during installation
• If UL Listing or a specific environmental/wet-location rating is required, select a compatible UL Listed tape light and review manufacturer installation requirements
