Diode LED Channel Bundle, FLEXIBLE MUD-IN, 96 in, Aluminum, Frosted Silicone Cover, 2 open end caps, 2 closed end caps (DI-CPCHB-MUDFLX-96AL)

Product Overview

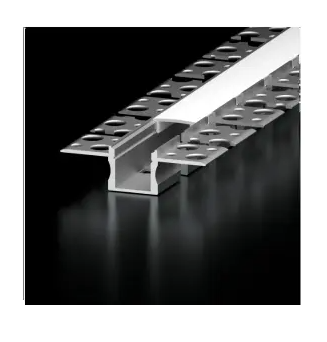

The Diode LED DI-CPCHB-MUDFLX-96AL is a 96 in flexible aluminum channel for mud-in applications in ceilings and drywall. Its profile is designed to form curves and arches.

The bundle includes the channel, a frosted silicone lens, two open end caps and two closed end caps. LED tape light is not identified as included.

Key Features

• Flexible profile designed for curves, arches and architectural details.
• Aluminum channel with a frosted silicone lens.
• 96 in length with a specified 10 in bend radius.
• Includes two open and two closed end caps.

Flexible Mud-In Channel for Ceilings and Drywall

The DI-CPCHB-MUDFLX-96AL is a flexible, low-profile channel intended for mud-in applications in ceilings and drywall. Its profile is designed to form curves and arches. The channel houses compatible LED tape light; it is not itself a light source.

Bend Radius and Channel Dimensions

The specified bend radius is 10 in. Review the channel and cutout dimensions against the planned installation.

• Overall profile: 0.58 in high × 1.97 in wide.
• Interior dimensions: 0.35 in deep × 0.47 in wide.
• Cutout width: 0.68 in.
• Length: 96 in.

Compatible Tape Light and Frosted Lens

The manufacturer lists BLAZE, BLAZE COLORS, BLAZE X, STREAMLITE, STREAMLITE COLORS, STREAMLITE ECO and VALENT MINI 8MM tape light families for this channel series. Check the specific tape model against the channel opening and the manufacturer’s compatibility information.

The frosted silicone lens has a listed 120° beam angle, 20% light loss and -40K CCT shift. Diffusion results vary by tape model.

Components Included with the Channel

This SKU includes a 96 in aluminum channel, a frosted silicone lens, two open end caps and two closed end caps. LED tape light is not identified as an included component.

Ratings and Limited Warranty

The specification lists an IP rating shift of IP20 and states that indoor damp or outdoor wet location suitability depends on the light engine used.

The manufacturer states that the channel meets the specified UL and CSA certifications when installed with compatible UL Listed tape light. The product carries a 5-year limited warranty; the manufacturer notes that the warranty does not include additional accessories.

Before You Order

Check the specific tape light model against the channel’s compatibility information and 0.47 in interior width; tape light is not identified as included.

• Check that the 96 in length and 0.68 in cutout width suit the planned installation.
• Location suitability depends on the light engine used.
