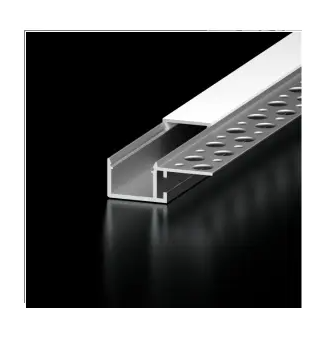

Diode LED Channel Bundle, SINGLE FLANGE MUD-IN, 96 in, Aluminum, Frosted Cover, 2 open end caps, 2 closed end caps (DI-CPCHB-MUD1-SF-96AL)

Product Overview

The Diode LED DI-CPCHB-MUD1-SF-96AL is a 96-inch aluminum MUD-IN single-flange channel bundle for LED tape light. Its profile is designed for transitional drywall mud-in applications, and the bundle includes a classic frosted lens.

The channel provides a housing for a linear tape-light run in accent and decorative lighting applications. The frosted lens diffuses light; the manufacturer specifies 20% light loss and a -40K CCT shift for this lens.

Key Features

• 96-inch aluminum MUD-IN single-flange channel with a classic frosted lens
• Includes two open end caps and two closed end caps
• Designed for transitional drywall mud-in applications
• Manufacturer lists selected Diode LED tape-light families and compatible terminal blocks

A 96-Inch MUD-In Channel Bundle

This Diode LED channel has a single-flange profile intended for transitional drywall mud-in applications. The bundle contains a 96-inch aluminum channel, a classic frosted lens, two open end caps, and two closed end caps.

Frosted Lens Light Effects

The included classic frosted lens diffuses light from tape light in the channel. The manufacturer specifies 20% light loss and a -40K CCT shift for this lens.

Check Tape-Light and Connection Compatibility

The manufacturer lists selected Diode LED tape-light models for use with this channel. Listed families include BLAZE, STREAMLITE, VALENT, and DAZZLE PIXEL; compatibility is model-specific, so confirm the exact tape-light model.

• The specification sheet lists 8 mm white and clear terminal blocks as compatible, as well as an RGBW terminal block.

Mud-In Mounting Dimensions

The channel is designed for recessed mud-in mounting. Its dimensions are 0.57 inches high by 1.47 inches wide, with a 0.84-inch cut-out width. The interior measures 0.46 inches deep by 0.57 inches wide.

• The manufacturer describes the profile for accent and decorative lighting. Listed applications include cabinet, cove, toe-kick, shelf, display, and millwork lighting.
• Indoor/damp or outdoor/wet suitability depends on the light engine used.

Before You Order

Confirm the exact tape-light model and connection components against the manufacturer's compatibility information. For damp or wet locations, verify that the selected light engine is rated for the intended environment.

• Confirm that the 96-inch channel length and mud-in profile suit the planned installation.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Diode LED Channel Bundle, SINGLE FLANGE MUD-IN, 96 in, Aluminum, Frosted Cover, 2 open end caps, 2 closed end caps (DI-CPCHB-MUD1-SF-96AL). For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
