Diode LED Channel Bundle, 45°, 96 in, Architectural Clear Lens, 2 end cap sets, 4 end-to-end connector and 8 mounting clips (DI-CPCHB-45-CLT-96)

Product Overview

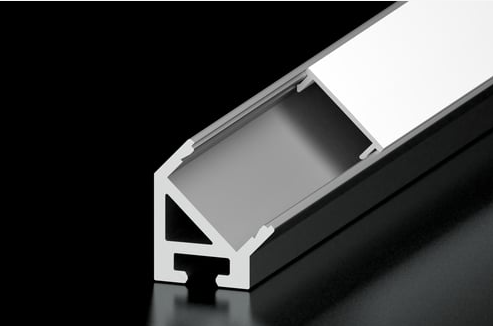

The Diode LED DI-CPCHB-45-CLT-96 is a 45° aluminum LED channel bundle for mounting low-voltage LED tape in a finished linear run. The 96 in extrusion includes a clear lens that helps diffuse individual LEDs into a more continuous line.

The aluminum extrusion provides a rigid finished trim and serves as a heat-dissipating body. The bundle includes end caps, end-to-end connectors and mounting clips for a ready-to-mount 96 in section.

Key Features

• 45° corner profile for directing light along edges and into inside angles
• Clear lens to diffuse LED point sources into a more continuous line
• Aluminum extrusion provides a finished trim and passive heat dissipation
• Supplied as a 96 in bundle with 2 end cap sets, 4 end-to-end connectors and 8 mounting clips
• Cut-to-length extrusion suitable for cabinet, display, and millwork applications

What this channel does

The DI-CPCHB-45-CLT-96 provides an aluminum housing and clear lens for low-voltage LED tape, producing a finished linear appearance while reducing visible LED dotting.

The 45° profile positions the mounted tape to direct light along edges and into inside angles where that orientation is desired.

• Creates a finished appearance for exposed LED tape runs
• Clear lens reduces visible LED dotting by diffusing emitters
• Aluminum body provides passive heat dissipation

Where to use it

Typical interior uses include under-cabinet and above-cabinet accent lighting, cove and perimeter illumination, toe-kick and shelf/display edge lighting, and corner or inside-angle linear runs in millwork.

• Under-cabinet and above-cabinet lighting
• Cove, toe-kick and perimeter lighting
• Shelf, display and millwork edge lighting
• Corner and inside-angle linear runs

Construction and profile

This product is an aluminum extrusion with an aluminum finish and a clear lens. The aluminum extrusion acts as a rigid housing and passive heat-dissipating body for mounted LED tape.

• Profile: 45° corner
• Material/Finish: Aluminum
• Lens Type: Clear

Included components and handling notes

The bundle is supplied as a 96 in section and includes two end-cap sets, four end-to-end connectors and eight mounting clips to join, terminate, and secure the extrusion.

Because the extrusion is 96 inches long, plan for delivery and handling accordingly and support the extrusion at its clip points to help keep a long run straight. Verify LED tape width against the channel opening before installation.

• Included: 2 end cap sets, 4 end-to-end connectors, 8 mounting clips
• Support the extrusion at mounting clip points to help prevent sag over long runs
• Confirm LED tape width compatibility with the channel opening before installation

Before You Order

Confirm the model number and 96 in length, and verify the LED tape width you plan to use is compatible with the channel opening.

• Confirm model: DI-CPCHB-45-CLT-96
• Verify LED tape width fits the channel
• Plan for delivery and handling of a 96 in extrusion

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Diode LED Channel Bundle, 45°, 96 in, Architectural Clear Lens, 2 end cap sets, 4 end-to-end connector and 8 mounting clips (DI-CPCHB-45-CLT-96). For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
