Diode LED Channel Bundle, 45°, 96 in, Black Lens, 2 end cap sets, 4 end-to-end connector and 8 mounting clips (DI-CPCHB-45-BL-96)

Product Overview

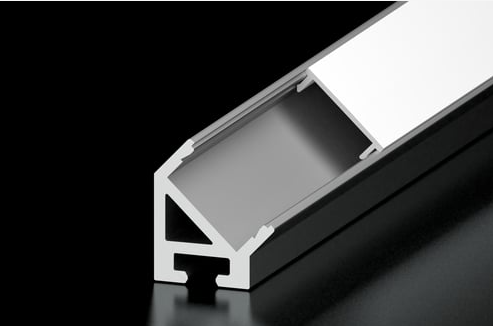

The Diode LED DI-CPCHB-45-BL-96 is a 45° aluminum LED channel bundle in a 96‑inch length designed to house and finish low-voltage LED tape light runs.

Aluminum construction provides thermal mass to help manage heat from LED tape. The 45° profile directs light along edges and inside corners. The bundle includes a lens, end caps, end-to-end connectors and mounting clips for a ready-to-mount linear section.

Key Features

• 45° corner profile to aim light along edges and interior angles
• Aluminum extrusion to provide thermal mass
• Black finish for low-visibility installation in dark cabinetry and millwork
• Bundle includes lens, 2 end-cap sets, 4 end-to-end connectors and 8 mounting clips
• Cut-to-length aluminum extrusion that can be trimmed to fit custom cabinet or casework dimensions

What this channel bundle does

This Diode LED extrusion provides a finished housing for low-voltage LED tape light and includes a lens and accessories to produce a clean linear appearance. The aluminum profile offers thermal mass that can help manage heat from the tape. The 45° profile directs light outward along edges and inside corners.

• Houses and protects LED tape from contact and helps create a finished look
• Aluminum extrusion provides thermal mass
• Included lens diffuses the tape light for a cleaner linear appearance

Recommended applications

Common uses for this 45° channel include accent and task-related linear lighting where angled output and a finished extrusion are desired.

• Under-cabinet and above-cabinet accent lighting
• Cove, toe-kick, and perimeter lighting
• Shelf, display, and millwork edge lighting
• Corner and inside-angle linear runs

Dimensions and materials

Key physical details for planning and integration.

• Profile: 45° corner
• Material: Aluminum (extrusion)
• Finish: Black
• Length: 96 in (cut-to-length extrusion)

Installation and handling notes

The product is supplied as a bundle with mounting accessories. Confirm tape compatibility and plan support and handling for the 96 in extrusion.

• Supplied accessories: lens, 2 end-cap sets, 4 end-to-end connectors, 8 mounting clips
• Confirm LED tape width fits the channel opening before installation
• Support the extrusion at clip points to help keep a long run straight
• Cut-to-length extrusion can be trimmed to fit custom cabinet or casework dimensions

Before You Order

Verify the LED tape width fits the channel opening and plan for handling the 96 in extrusion.

• Confirm LED tape width compatibility with the channel opening
• Plan for support at mounting clip locations to prevent bowing over long runs

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Diode LED Channel Bundle, 45°, 96 in, Black Lens, 2 end cap sets, 4 end-to-end connector and 8 mounting clips (DI-CPCHB-45-BL-96). For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
