Diode LED
Diode LED VALENT Warm Dim LED Tape Light, 150lm, 3000K-2000K, 100 ft. Spool (DI-24V-VL1-WD3020-100)
Diode LED VALENT Warm Dim LED Tape Light, 150lm, 3000K-2000K, 100 ft. Spool (DI-24V-VL1-WD3020-100)
Regular price
$2,509.20
Regular price
Sale price
$2,509.20
SKU:DI-24V-VL1-WD3020-100
Quantity
Couldn't load pickup availability
The Diode LED DI-24V-VL1-WD3020-100 LED tape light delivers 150+/ft at 3000K-2000K with 90+ CRI on a 24V platform. It runs on Diode LED's low-voltage tape format for interior task, accent, and display lighting.
Key Features
- 90+ CRI renders finishes and merchandise accurately under close light
- Draws 1.54 W/ft, so a run's total load and driver size are easy to size
- Cut points every 3.28 in terminate cleanly at cabinet lengths
- Single runs up to 62 Feet reduce separate feeds on longer installs
Technical Specifications
| Brand | Diode LED |
|---|---|
| Model / SKU | DI-24V-VL1-WD3020-100 |
| Product Type | LED Tape Light |
| Voltage | 24V |
| Wattage | 1.54 W/ft |
| Lumens | 150+/ft |
| Color Temperature | 3000K-2000K |
| CRI | 90+ |
| Cut Interval | 3.28 in |
| Max Run | 62 Feet |
| Dimmable | Yes Field Cuttable: Yes DImensions: Width = 0.47", Height = 0.05" |
| Location Rating | Indoor / Damp Location P20 Certifcation: UL Listed 2108 |
Applications
Common applications include:
- Under-cabinet and shelf task lighting
- Cove and millwork accent lighting
- Display and retail lighting
- Interior dry or damp-location linear lighting

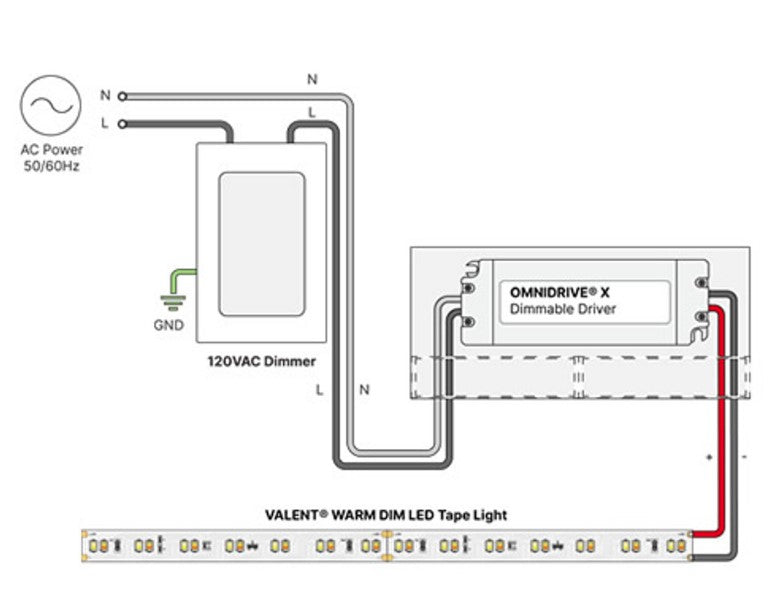

Requires a 24V constant-voltage driver sized above the run wattage; keep this run to indoor / damp location p20 certifcation: ul listed 2108 locations.
Lumera Electric carries the Diode LED DI-24V-VL1-WD3020-100 for high-CRI under-cabinet and display lighting.
