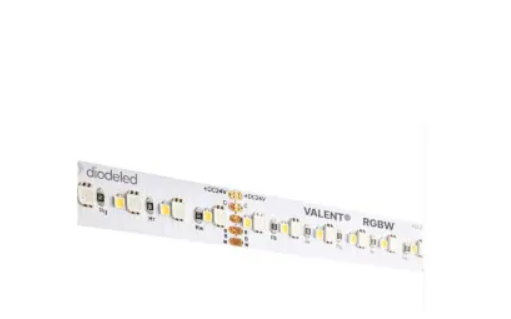

Diode LED VALENT RGBW, 6500K, LED Tape Light, 16.4 ft. Spool (DI-24V-VL-RGBW-65-016)

Product Overview

The Diode LED VALENT RGBW model DI-24V-VL-RGBW-65-016 is a 16.4 ft spool of 24VDC color-changing LED tape light with RGB and 6500K white chips. It is intended for interior linear lighting, including task, accent and display applications.

The tape uses 6.1 watts per foot, is dimmable and can be cut in 1.96-inch increments. It requires a matching constant-voltage driver sized above the wattage of the tape run.

Key Features

• RGB color-changing output plus a dedicated 6500K white chip
• 305 lumens per foot listed for all channels at 6500K; 144 lumens per foot listed for the 6500K white channel
• 24VDC operation, 6.1W per foot and a 16.4 ft maximum run
• Cuttable in 1.96-inch increments; dimmable
• UL Listed, IP20, and backed by a 10-year limited warranty

RGB Color and 6500K White Output

This VALENT RGBW tape combines RGB tri-chip LEDs with a dedicated 6500K white chip. The manufacturer lists billions of color combinations and separate lumen figures for the combined output and individual channels.

• All channels at 6500K: 305 lumens per foot
• 6500K white channel: 144 lumens per foot
• Red channel: 36 lumens per foot; green: 104 lumens per foot; blue: 23 lumens per foot
• 6500K white color rendering: CRI 90+

24V Power, Wattage and Run Length

The tape operates on 24VDC and uses 6.1 watts per foot. The specified maximum run is 16.4 feet, matching the length of this spool. Use a matching constant-voltage driver sized above the wattage of the tape run.

Cut Points and Dimming Controls

The tape is cuttable at 1.96-inch increments and is listed as dimmable. The manufacturer names DMX, Casambi and Touchdial among control options; choose control equipment appropriate for the intended system.

Interior Lighting Applications

This IP20 tape light is specified for indoor use and is suited to linear task, accent and display lighting. Examples include under-cabinet or shelf lighting, cove and millwork accents, and display or retail lighting.

• Tape dimensions: 0.47 in. wide by 0.06 in. high
• UL Listed

Before You Order

Plan for a matching 24V constant-voltage driver sized above the wattage of the tape run.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Diode LED VALENT RGBW, 6500K, LED Tape Light, 16.4 ft. Spool (DI-24V-VL-RGBW-65-016). For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
