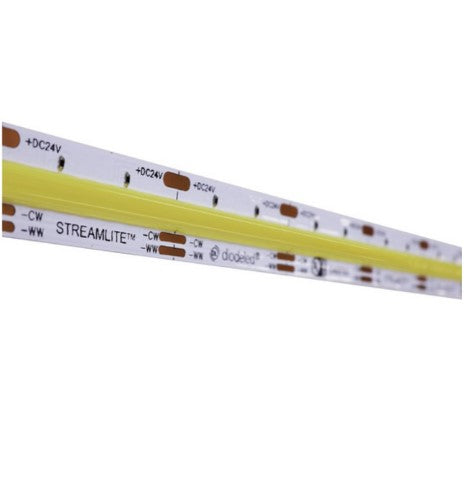

Diode LED STREAMLITE Tape Light 24V, Tunable White, 6500K-2700K, 16.4 ft. Spool (DI-24V-STMLT-TW2765-016)

Product Overview

The Diode LED DI-24V-STMLT-TW2765-016 is a 24V STREAMLITE LED tape light on a 16.4 ft spool with tunable-white output from 6500K to 2700K.

It produces 260 lm/ft at 6500K, 218 lm/ft at 3500K and 200 lm/ft at 2700K while drawing 3 W per foot. Cut points are every 1" and single runs can extend up to 32 ft.

Key Features

• Tunable white: 6500K → 2700K (6500K = 260 lm/ft; 3500K = 218 lm/ft; 2700K = 200 lm/ft)
• Power draw: 3 W per foot
• 24V constant-voltage platform
• Cut interval: 1"
• Maximum single run: 32 ft
• Length: 16.4 ft spool (one SKU)

What this tape light does

The DI-24V-STMLT-TW2765-016 is a low-voltage LED tape intended for interior task, accent, and display lighting. Its tunable-white capability covers a range from 6500K to 2700K.

Performance and luminous output

Lumen output varies by selected color temperature; use the per-foot values below to estimate total light for linear installations.

• 6500K: 260 lumens per foot
• 3500K: 218 lumens per foot
• 2700K: 200 lumens per foot
• Power consumption: 3 W per foot

Electrical and driver requirements

This product operates on a 24V constant-voltage platform and requires a compatible 24V driver. The driver should be sized larger than the total wattage of the run (total feet × 3 W/ft).

• Voltage: 24V constant-voltage
• Driver: 24V constant-voltage driver sized above the run wattage

Cutting, runs, and common applications

Cut points are every 1" to allow precise terminations. The product specification lists single runs up to 32 ft. Common uses noted for this tape light include under-cabinet, cove/millwork accent, and display lighting.

• Cut interval: 1"
• Maximum single run: 32 ft
• Typical referenced uses: under-cabinet, cove/millwork, display/retail lighting

Key specifications

Technical facts for procurement and planning.

• Brand: Diode LED
• Model / SKU: DI-24V-STMLT-TW2765-016
• Product type: LED tape light
• Length: 16.4 ft spool
• Wattage: 3 W/ft
• Lumens: 6500K = 260/ft; 3500K = 218/ft; 2700K = 200/ft
• Cut interval: 1"
• Max single run: 32 ft
• Voltage: 24V

Before You Order

Confirm the model and total linear footage required before ordering; this SKU is a 16.4 ft spool that operates on 24V.

• Calculate total wattage as feet × 3 W/ft to choose a suitably sized 24V driver.
• Plan runs and power feeds with the product's stated 32 ft maximum single-run length in mind.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Diode LED STREAMLITE Tape Light 24V, Tunable White, 6500K-2700K, 16.4 ft. Spool (DI-24V-STMLT-TW2765-016). For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
