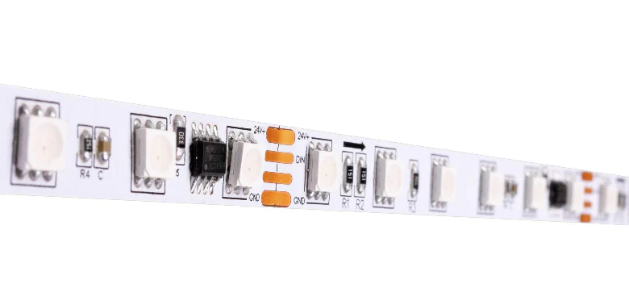

Diode LED DAZZLE PIXEL RGB LED Tape Light, 24V, RGB, 6 LED Pixel, 100 ft. Spool (DI-24V-DRGB-PIX-6LED-100)

Product Overview

The Diode LED DI-24V-DRGB-PIX-6LED-100 is a 24VDC RGB LED tape on a 100 ft. spool intended for interior task, accent, and display lighting.

It is rated at 3.7W per foot and has cut points every 4 inches corresponding to pixel control increments of 6 LEDs.

Key Features

• 24VDC constant-voltage RGB tape — model DI-24V-DRGB-PIX-6LED-100
• 3.7 watts per foot for run-load calculation and driver sizing
• Cut points every 4" (6 LEDs per pixel)
• 100 ft. spool length
• IP20 rating for indoor / damp locations
• Slim profile: 0.39" wide × 0.1" high

What this tape light does

The DI-24V-DRGB-PIX-6LED-100 provides RGB color mixing on a 24VDC constant-voltage tape platform for interior task, accent, and display lighting.

• RGB output with pixel control increments of 6 LEDs per pixel.
• Intended for interior accent and task lighting applications.

Electrical and load requirements

Plan driver capacity based on the tape's 3.7W per foot rating and 24V constant-voltage requirement.

• Voltage: 24VDC — requires a 24V constant-voltage driver.
• Power: 3.7 watts per foot — size the driver above the total run wattage.

Cut intervals and physical dimensions

The tape has marked cut points every 4 inches that align to pixel control increments, and a slim profile for integration into narrow channels and recessed reveals.

• Cut interval: 4" (6 LEDs per pixel).
• Dimensions: 0.39" width × 0.1" height.
• Spool length: 100 ft.

Recommended applications

Common uses include interior under-cabinet, cove, millwork accent, and retail/display lighting where RGB effects are desired.

• Under-cabinet and shelf task lighting
• Cove and millwork accent lighting
• Display and retail lighting

Key specifications at a glance

Essential technical details for planning selection and installation.

• Brand: Diode LED
• Model / SKU: DI-24V-DRGB-PIX-6LED-100
• Product Type: LED Tape Light
• Voltage: 24VDC
• Wattage: 3.7W per ft
• Color: RGB
• Cut interval: 4" (6 LEDs per pixel)
• Length: 100 ft. spool
• IP rating: IP20
• Profile: 0.39" W × 0.1" H

Before You Order

Confirm required linear footage and plan for a separately purchased 24VDC constant-voltage driver sized above the total run wattage.

• Calculate total wattage (3.7W × total feet) and select a 24V driver with adequate headroom.
• Plan cuts and terminations at 4" intervals.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Diode LED DAZZLE PIXEL RGB LED Tape Light, 24V, RGB, 6 LED Pixel, 100 ft. Spool (DI-24V-DRGB-PIX-6LED-100). For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
