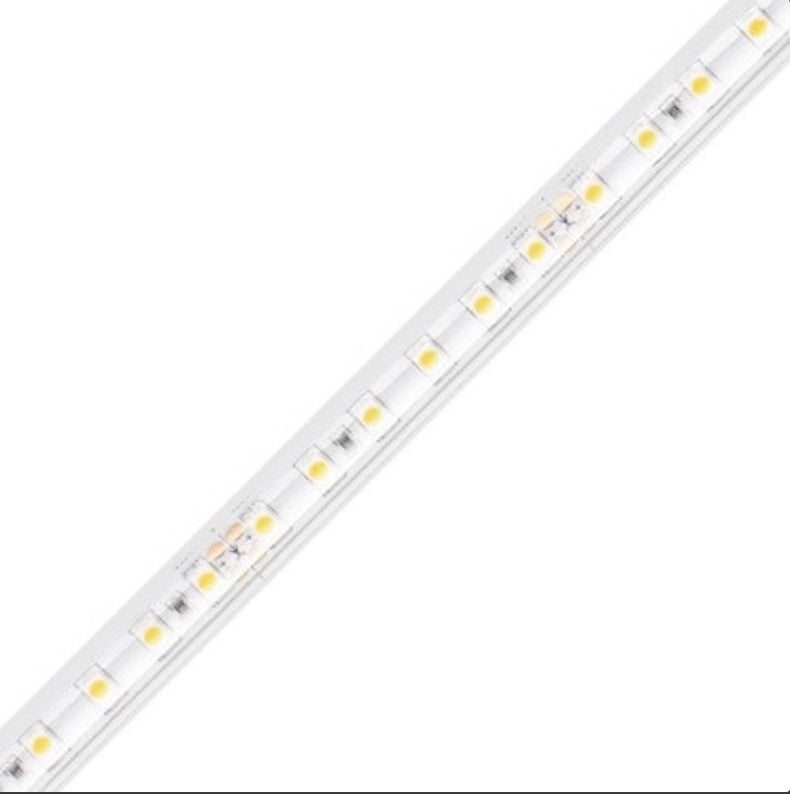

Diode LED BLAZE 300 Wet Location LED Tape Light, 24V, 5000K, 16.4 ft. Spool (DI-24V-BLBSC3-50-W016)

Product Overview

The Diode LED DI-24V-BLBSC3-50-W016 (BLAZE 300) is a 24 Volt LED tape light on a 16.4 ft spool that delivers 329 lumens per foot at 5000K with 90+ CRI. It is rated for indoor wet locations (IP65) and is dimmable.

Typical uses include under-cabinet, cove, millwork, and retail/display lighting. The tape has 2 in cut intervals, a 120° beam angle, and a maximum single run of 22 ft.

Key Features

• 329 lm/ft at 5000K with 90+ CRI
• 4.5 W per foot on a 24 Volt constant-voltage platform
• IP65 wet-location rating for indoor wet locations
• Cut points every 2 in for clean termination
• Maximum single run of 22 ft; dimmable
• 2835 Guang Mau LEDs with a 120° beam angle

What this tape light is for

The DI-24V-BLBSC3-50-W016 is for interior task, accent, and display lighting where bright, high-CRI illumination is needed. Common applications include under-cabinet and shelf task lighting, cove and millwork accent lighting, and retail or display illumination.

• Under-cabinet and shelf task lighting
• Cove and millwork accent lighting
• Display and retail lighting

Electrical and driver requirements

This tape light operates on a 24 Volt constant-voltage platform and draws 4.5 watts per foot. Use a 24V constant-voltage driver sized above the total wattage of the run.

• Voltage: 24 Volt constant-voltage
• Power: 4.5 W/ft — size driver above the total run wattage
• Dimmable — requires a compatible 24V dimmable driver or dimming controller

Run length, cut points, and mounting considerations

Plan runs using the specified cut interval and maximum run length. The tape cuts every 2 inches for clean termination at cabinet lengths, and a single continuous run can extend up to 22 feet.

• Cut interval: 2 in
• Maximum single run: 22 ft
• Mounting: designed for low-voltage tape-format installation in indoor/wet-location environments

Light output and color quality

This model delivers 329 lumens per foot at a 5000K color temperature with a 90+ CRI, giving bright, cool-white light and accurate rendering of finishes and merchandise. The LEDs are 2835 Guang Mau chips with a 120° beam angle suitable for linear task and accent illumination.

• Lumen output: 329 lm/ft
• Color temperature: 5000K
• CRI: 90+
• LED type: 2835 Guang Mau Chip
• Beam angle: 120°

Certifications and environmental rating

The tape light is UL Listed to standard 2108 and is rated IP65 for indoor wet-location use.

• Certification: UL Listed 2108
• Location rating: Indoor / Wet Location / IP65

Before You Order

Verify the SKU and calculate driver capacity based on total run wattage before ordering.

• Confirm DI-24V-BLBSC3-50-W016 is the required SKU
• Calculate total wattage (4.5 W/ft × run length) and choose a 24V constant-voltage driver sized above that wattage
