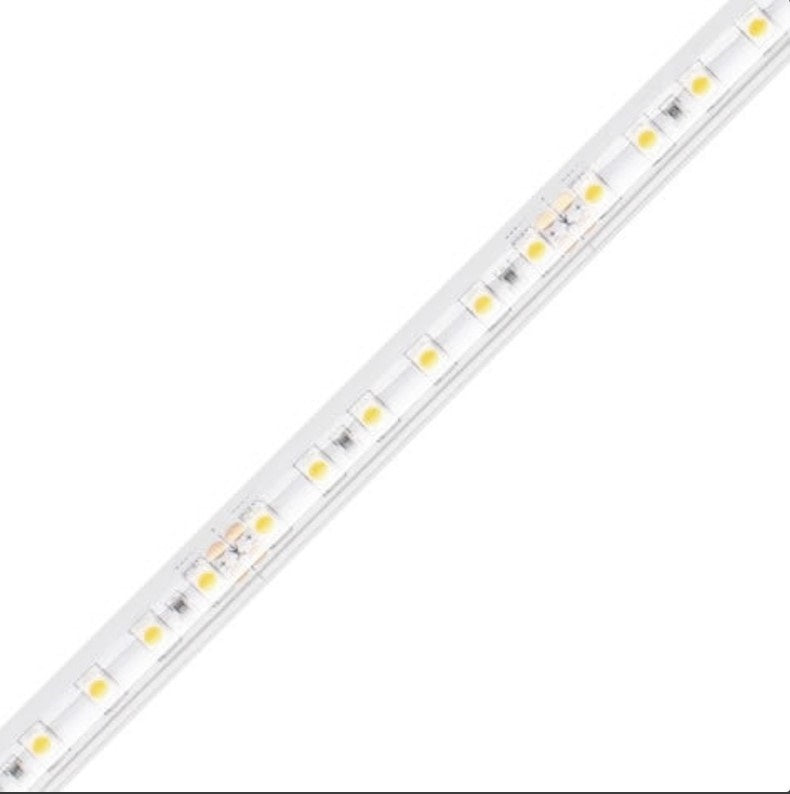

Diode LED BLAZE 200 Wet Location LED Tape Light, 24V, 5000K, 100 ft. Spool (DI-24V-BLBSC2-50-W100)

Product Overview

The Diode LED BLAZE 200 DI-24V-BLBSC2-50-W100 is a 24V LED tape light supplied on a 100 ft. spool. It produces 224 lumens per foot at 5000K with a CRI of 90+.

This tape light is dimmable and rated for indoor and wet-location use. Its cut interval is 2 inches, and the maximum single run is 40 feet.

Key Features

• 24V tape light with 5000K color temperature and 90+ CRI
• Light output of 224 lm/ft; power draw of 2.93 W/ft
• 2-inch cut interval and maximum single run of 40 ft
• Dimmable; indoor and wet-location rating
• 100 ft. spool

Where to Use the BLAZE 200 Tape Light

The Diode LED BLAZE 200 is suited to under-cabinet and shelf task lighting, cove and millwork accents, and display or retail lighting.

5000K Light Output and Color Rendering

This tape light produces 224 lumens per foot at a 5000K color temperature. Its CRI of 90+ supports accurate rendering of finishes and merchandise under close light.

Plan the 24V Run and Driver

The tape operates on a 24V constant-voltage platform and draws 2.93 watts per foot. Use a 24V constant-voltage driver sized above the run wattage.

The tape can be cut at 2-inch intervals. A single run is limited to 40 feet; the 100 ft. spool length does not indicate that the full spool can be used as one run.

Dimming and Location Rating

The DI-24V-BLBSC2-50-W100 is dimmable and rated for indoor and wet-location use. It is UL Listed 2108.

Before You Order

Plan a 24V constant-voltage driver sized above the run wattage.
