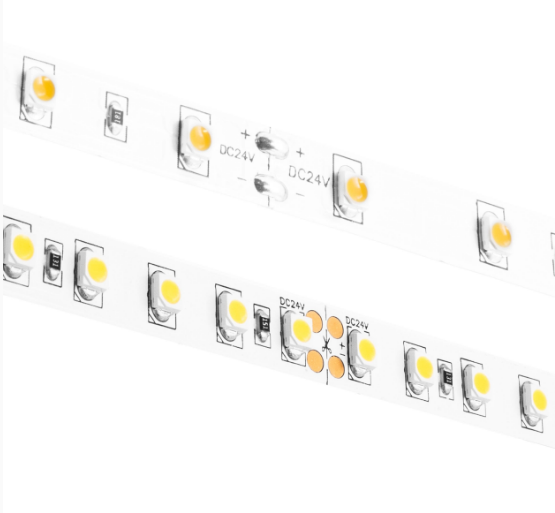

Diode LED BLAZE 200 LED Wet Location Tape Light, 24V, 2200K, 16.4 ft. Spool (DI-24V-BLBSC2-22-W016)

Product Overview

The Diode LED DI-24V-BLBSC2-22-W016 is a 24VDC low-voltage tape light on a 16.4 ft (5 m) spool designed for interior task, accent, and display lighting. It delivers rated output on a 24V constant-voltage platform.

This 2200K BLAZE 200 tape draws 2.93 W per foot and features 2-inch cut intervals for clean termination at typical cabinet and millwork lengths.

Key Features

• 24VDC constant-voltage tape light — requires a 24VDC driver sized above the run wattage
• Rated power: 2.93 W per foot
• Color temperature: 2200K (warm, very low color temperature for warm accent lighting)
• Cut points every 2 inches for precise, clean field cuts
• Supplied on a 16.4 ft (5 m) spool for continuous runs and fabrication

What this tape light is for

Answer: The DI-24V-BLBSC2-22-W016 is intended for interior task and accent illumination where a very warm, low-color-temperature glow is desired. Typical applications include under-cabinet and shelf task lighting, cove and millwork accent lighting, and retail or display illumination.

• Under-cabinet and shelf task lighting
• Cove and millwork accent lighting
• Display and retail lighting

Electrical and driver requirements

Answer: This tape light operates on a 24VDC constant-voltage system and draws 2.93 watts per foot. Select a 24VDC driver whose rated output exceeds the total wattage of the assembled run (calculate spool or run wattage by multiplying run length by 2.93 W/ft).

• Voltage: 24VDC constant-voltage
• Power density: 2.93 W per foot — use this to size the driver
• Driver selection: driver wattage must exceed total run wattage

Cutting, mounting, and run configuration

Answer: The tape light provides 2-inch cut intervals for precise field cutting and clean terminations at common cabinet lengths. Use the cut points to configure runs to required lengths before terminating and connecting to the 24VDC feed.

• Cut interval: 2 inches
• Supplied on a 16.4 ft (5 m) spool to support continuous runs and fabrication
• Terminate and connect at cut points per typical low-voltage tape-light practices

Length, power density, and color

Answer: The DI-24V-BLBSC2-22-W016 is supplied as a 16.4 ft spool and delivers 2.93 W/ft at a 2200K color temperature for warm accent lighting.

• Spool length: 16.4 ft (5 m)
• Wattage: 2.93 W/ft
• Color temperature: 2200K

Before You Order

Confirm the model number and quantity required before ordering. Ensure you plan total run lengths so you can size a 24VDC constant-voltage driver that exceeds the run wattage (2.93 W/ft × run length).

• Verify compatibility with your 24VDC driver and control system.
• Account for cut intervals (2 in) when planning spool usage and terminations.
• Confirm desired color temperature (2200K) fits the project’s aesthetic requirements.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Diode LED BLAZE 200 LED Wet Location Tape Light, 24V, 2200K, 16.4 ft. Spool (DI-24V-BLBSC2-22-W016). For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
