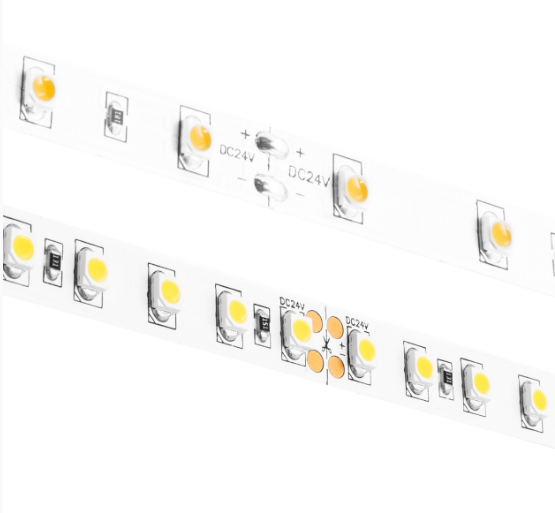

Diode LED BLAZE 200 LED Tape Light, 24V, 2200K, 16.4 ft. Spool (DI-24V-BLBSC2-22-016)

Product Overview

The Diode LED DI-24V-BLBSC2-22-016 (BLAZE 200) is a 24VDC LED tape light on a 16.4 ft (5 m) spool with a 2200K color temperature.

It is specified at 2.93 W per foot and has cut points every 2 inches to allow runs sized to typical cabinet and millwork lengths.

Key Features

• 24VDC constant-voltage tape light on a 16.4 ft (5 m) spool (DI-24V-BLBSC2-22-016)
• 2200K color temperature
• Power draw: 2.93 W per foot
• Cut points every 2 inches for field cutting to length
• Intended for interior task, accent, and display lighting

What this tape light is for

The DI-24V-BLBSC2-22-016 is intended for interior linear lighting where a very warm 2200K output is desired. Typical uses noted for this product include under-cabinet and shelf task lighting, cove and millwork accent lighting, and retail or display lighting.

• Under-cabinet and shelf task lighting
• Cove and millwork accent lighting
• Display and retail lighting

Electrical and driver requirements

This tape light operates on 24VDC and is specified at 2.93 W per foot. Use a 24V constant-voltage driver with an output capacity greater than the total wattage of the assembled run.

• Operating voltage: 24VDC
• Power consumption: 2.93 W/ft — multiply by run length to determine total load
• Driver: select a 24V constant-voltage driver with capacity above the calculated total wattage

Cutting and installation considerations

The tape light includes cut points every 2 inches to allow fitting to specific lengths. Cut only at the marked intervals to maintain proper electrical termination and plan feed locations to suit your layout.

• Cut interval: 2 in — cut only at marked points
• Supplied on a 16.4 ft (5 m) spool for continuous runs or field cuts
• Plan runs and feed points so total wattage remains within driver capacity

Key technical specifications

Reference the following verified specifications when planning and ordering.

• Brand: Diode LED
• Model / SKU: DI-24V-BLBSC2-22-016
• Product type: LED Tape Light
• Voltage: 24VDC
• Wattage: 2.93 W/ft
• Cut interval: 2 in
• Spool length: 16.4 ft (5 m)
• Color temperature: 2200K

Before You Order

Confirm model DI-24V-BLBSC2-22-016 and total run length before ordering. A separately purchased 24VDC constant-voltage driver is required and must be sized above the run wattage.

• Verify the 2200K color temperature is acceptable for your application
• Calculate total wattage: 2.93 W/ft × planned feet and choose a 24V driver with greater capacity
• Plan cuts at 2 in intervals and arrange access for power feeds and terminations

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Diode LED BLAZE 200 LED Tape Light, 24V, 2200K, 16.4 ft. Spool (DI-24V-BLBSC2-22-016). For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
