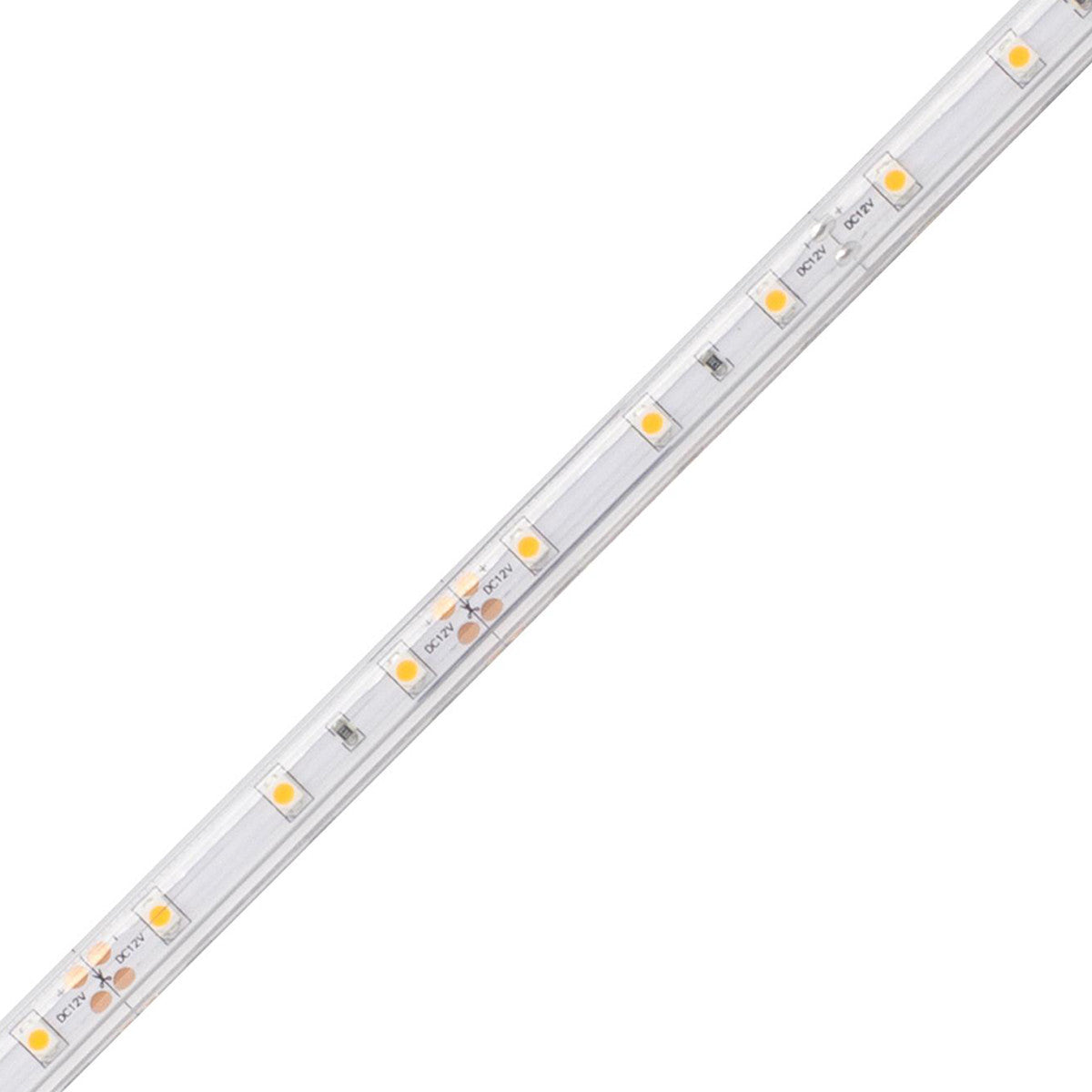

Diode LED BLAZE 100 Wet Location LED Tape Light, 24V, 5000K, 100 ft. Spool (DI-24V-BLBSC1-50-W100)
Diode LED BLAZE 100 Wet Location LED Tape Light, 24V, 5000K, 100 ft. Spool (DI-24V-BLBSC1-50-W100)
Regular price
$668.40
Regular price
Sale price
$668.40
SKU:DI-24V-BLBSC1-50-W100
Quantity
Couldn't load pickup availability
The Diode LED DI-24V-BLBSC1-50-W100 LED tape light delivers 114 lm/ft at 5000K with 90+ CRI on a 24 Volt platform. It runs on Diode LED's low-voltage tape format for interior task, accent, and display lighting.
Key Features
- 90+ CRI renders finishes and merchandise accurately under close light
- Draws 1.46 W/ft, so a run's total load and driver size are easy to size
- Cut points every 4 in terminate cleanly at cabinet lengths
- Single runs up to 55 ft reduce separate feeds on longer installs
Technical Specifications
| Brand | Diode LED |
|---|---|
| Model / SKU | DI-24V-BLBSC1-50-W100 |
| Product Type | LED Tape Light |
| Voltage | 24 Volt |
| Wattage | 1.46 W/ft |
| Lumens | 114 lm/ft |
| Color Temperature | 5000K |
| CRI | 90+ |
| Cut Interval | 4 in |
| Max Run | 55 ft |
| Dimmable | Yes |
| Location Rating | Indoor / Wet Location |
| Certification | UL Listed 2108 Warrant: 7 Year Cost-effective Ideal for cabinetry, toe kicks, coves, and shelving Compatible with all Diode LED tape light accessories including CHROMAPATH® ELEMENT™ Channels, SWITCHEX®, OMNIDRIVE®, and much more |
Applications
Common applications include:
- Under-cabinet and shelf task lighting
- Cove and millwork accent lighting
- Display and retail lighting
Requires a 24 Volt constant-voltage driver sized above the run wattage; keep this run to indoor / wet location locations.
Lumera Electric carries the Diode LED DI-24V-BLBSC1-50-W100 for high-CRI under-cabinet and display lighting.
