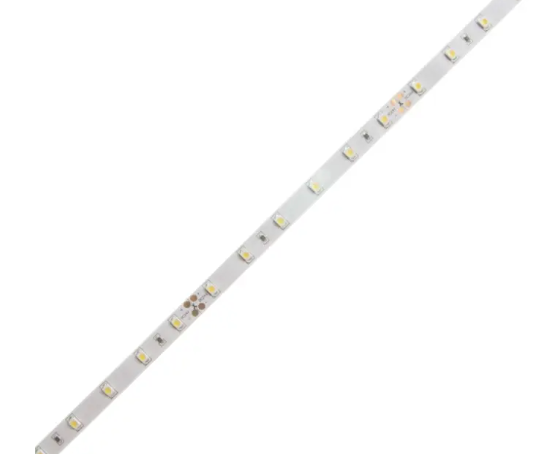

Diode LED BLAZE 100 LED Tape Light, 24V, 2000K, 16.4 ft. Spool (DI-24V-BLBSC1-20-016)

Product Overview

The Diode LED DI-24V-BLBSC1-20-016 (BLAZE 100) is a 24V low-voltage LED tape light supplied on a 16.4 ft spool. It delivers warm 2000K light with a high color-rendering index (90+ CRI) intended for interior task, accent, and display lighting.

This tape light draws 24 watts per spool and is designed for use with a 24V constant-voltage driver sized above the run wattage. Typical applications include under-cabinet, shelving, cove, millwork, and retail display lighting.

Key Features

• 24V constant-voltage LED tape light on 16.4 ft (approx.) spool
• Warm 2000K color temperature with 50,000 rated hours
• 90+ CRI (Title 20 / 24 compliant) for accurate rendering of finishes and merchandise
• 24 Watts total draw per spool — simplifies driver sizing
• Intended for interior task, accent, and display lighting

What this product is for

The DI-24V-BLBSC1-20-016 tape light provides warm, high-CRI illumination for interior task and accent lighting. It is intended for under-cabinet lighting, shelving and display runs, cove and millwork accenting, and other interior applications where accurate color rendering and warm light are desired.

• Under-cabinet and shelf task lighting
• Cove, millwork, and architectural accent lighting
• Retail and display illumination where finish or merchandise rendering is important

Electrical and driver requirements

This product operates on a 24V constant-voltage platform and draws 24 watts per 16.4 ft spool. Use a 24V constant-voltage driver sized above the total wattage of the run.

• Operating voltage: 24V (constant-voltage system required)
• Wattage per spool: 24 W — select a driver with capacity greater than the run load

Light quality and longevity

The BLAZE 100 tape light produces a warm 2000K color temperature and is specified with 90+ CRI, meeting Title 20 / 24 compliance for accurate color rendering. The product lists a rated life of 50,000 hours.

• Color temperature: 2000K
• Color rendering: 90+ CRI (Title 20 / 24 compliant)
• Rated life: 50,000 hours

Typical installation and applications

This spool-format tape light is intended for interior fixed installations where a continuous linear light source is required. It is compatible with standard low-voltage tape light mounting methods and is commonly used inside cabinetry, under counters, and in retail fixtures.

• Supplied on a 16.4 ft spool for continuous runs
• Requires appropriate mounting channel or adhesive/mounting method suited to the installation (confirm mounting hardware separately)

Key specifications

Use the specifications below to confirm fit for your project and to match with compatible drivers and accessories.

• Brand: Diode LED
• Model / SKU: DI-24V-BLBSC1-20-016
• Product type: LED tape light
• Voltage: 24V
• Wattage: 24 Watts (per 16.4 ft spool)
• Lumens: 90
• Color temperature: 2000K
• CRI: 90+ (Title 20 / 24 compliant)
• Rated life: 50,000 hours

Before You Order

Confirm the model number and quantity required before ordering. This product requires a 24V constant-voltage driver; size the driver above the total run wattage. Verify mounting method and any needed channels, connectors, or accessories separately.

• Confirm DI-24V-BLBSC1-20-016 is the correct SKU for your application
• Select a 24V constant-voltage driver with capacity greater than the total wattage of all connected spools
• Verify required mounting channels, connectors, and installation accessories (sold separately)
