Diode LED DAZZLE PIXEL RGB LED Tape Light, 12V, RGB, 1 LED Pixel, 100 ft. Spool (DI-12V-DRGB-PIX-1LED-100)

Product Overview

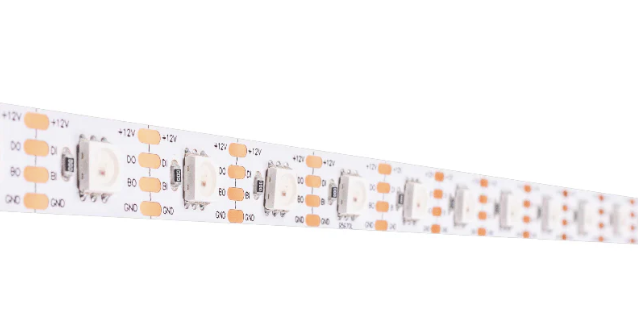

The Diode LED DAZZLE PIXEL RGB tape light (DI-12V-DRGB-PIX-1LED-100) is a 12VDC RGB LED tape supplied on a 100 ft. spool for interior linear lighting.

It consumes 2.5 watts per foot and has pixel control increments with cut points every 0.66" (one LED). The tape is rated IP20 for indoor/damp locations.

Key Features

• 12VDC constant-voltage RGB tape light on a 100 ft. spool (SKU DI-12V-DRGB-PIX-1LED-100)
• Draw: 2.5 W per ft — use to calculate total run wattage
• Pixel control increments: 1 LED; cut points every 0.66"
• Width: 0.39"; IP20 indoor/damp rating
• Typical uses: under-cabinet, cove/millwork accent, and display lighting

What this tape light does

The DI-12V-DRGB-PIX-1LED-100 is an RGB LED tape designed to provide color-changing accent and task lighting on a 12VDC constant-voltage platform. Pixel control increments are at one LED, which supports pixel-level effects when used with appropriate controllers.

• SKU DI-12V-DRGB-PIX-1LED-100, supplied on a 100 ft. spool
• RGB capable — requires a controller to produce color effects
• Suited for interior linear lighting applications

Electrical and driver requirements

Size a 12VDC constant-voltage driver based on the total run wattage. The tape draws 2.5 W per ft; calculate the total wattage for your planned run and select a driver with capacity higher than that load.

• Voltage: 12VDC constant-voltage
• Power consumption: 2.5 W per ft — multiply by run length to determine total wattage
• Requires a compatible controller to address pixel/RGB functions

Cut intervals and layout options

The tape features cut points every 0.66" (one LED per pixel increment), enabling shorter lengths and terminations to fit cabinetry or display fixtures.

• Cut interval: 0.66" (one LED / one pixel increment)
• Tape width: 0.39"
• Supplied on a 100 ft. spool for long continuous runs or multiple runs

Environmental suitability and common applications

The tape is rated IP20, intended for indoor or damp locations without direct exposure to water. Typical applications include under-cabinet task lighting, cove and millwork accent lighting, and display or retail lighting.

• Location rating: Indoor / Damp (IP20)
• Common applications: under-cabinet, cove/millwork accent, display and retail lighting

Before You Order

Confirm model and quantity. This SKU is a 12VDC RGB pixel tape supplied on a 100 ft. spool and requires a separate 12VDC constant-voltage driver and a compatible pixel controller.

• Calculate total wattage: 2.5 W per ft × planned run length and choose a driver with greater capacity than the total load
• Plan for a controller compatible with 1-LED pixel increments on a 12V constant-voltage tape
• Verify the installation environment is appropriate for an IP20-rated product

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Diode LED DAZZLE PIXEL RGB LED Tape Light, 12V, RGB, 1 LED Pixel, 100 ft. Spool (DI-12V-DRGB-PIX-1LED-100). For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
