Diode LED BROADWAVE Wall Washer, 4 FT, RGBW, 25W, 1100lm, 120-277V, 30x85 Degree, IP65, DMX, Black Finish (DI-120V-BW-WW-RGBW-4F-BL)

(No Ratings)
SKU: DI-120V-BW-WW-RGBW-4F-BL
Price: $1,012.50
Free shipping on orders over $1,500

Description

Product Overview

The Diode LED BROADWAVE DI-120V-BW-WW-RGBW-4F-BL is a 4-foot RGBW architectural wall washer for indoor and outdoor wet-location applications. It accepts 120–277VAC input with an all-in-one interconnect and includes an integrated RDM-capable DMX decoder.

The fixture is IP65 rated, UL Listed, and covered by a 5-year limited warranty. It is intended to provide wide, even wall-wash illumination for architectural surfaces.

Key Features

  • Integrated RDM-capable DMX decoder (DMX512 compatible)
  • 25W nominal power (4 ft model) with manufacturer RGBW lumen specification (~1125 lm)
  • 120–277VAC input with interconnects and daisy-chain capability as specified by the manufacturer
  • 30° x 85° beam angle optimized for wall-wash distribution
  • Durable construction: aluminum body, tempered glass lens, IP65 wet-location rating, black finish
  • UL Listed (E503268) and 5-year limited warranty

What this fixture does

The BROADWAVE 4 ft RGBW wall washer is an architectural linear luminaire designed to provide full-color RGBW illumination for accenting facades and washing vertical surfaces. It is rated for outdoor wet locations and intended to deliver even wall-wash lighting.

  • Manufacturer notes the fixture can illuminate architectural surfaces up to four stories in height for small- to medium-sized installations.
  • Applications typically include facade accenting, column and cornice washing, and other architectural surface illumination.

Light output and optical performance

The 4 ft RGBW model is listed with a manufacturer RGBW lumen specification around 1125 lm and uses a 30° x 85° beam aimed at wall-wash distribution.

  • Power: 25W (4 ft model)
  • Lumen guidance: RGBW lumen listed at 1125 lm in manufacturer data (lumen values may vary by configuration and have a tolerance).
  • Beam angle: 30° x 85° designed for wide, even wash lighting.

Controls and connectivity

The fixture includes an integrated RDM-capable DMX decoder for use with DMX512 control systems. The manufacturer provides recommended controllers and accessories that interface with the fixture.

  • Integrated RDM DMX decoder (DMX512 compatible).
  • Manufacturer guidance allows daisy-chaining up to 30 fixtures; note each maximum run requires a dedicated power feed from the driver.
  • Available accessories include DMX controllers, wireless DMX transmitters/receivers, input and extension cords, termination caps, and mounting brackets.

Mounting and installation considerations

BROADWAVE fixtures feature an aluminum body, tempered glass lens, and adjustable hinged brackets for aiming. Field connections and terminations are rated for wet locations.

  • Dimensions (L x W x H): 48 x 1.79 x 2.74 in.
  • Includes an all-in-one interconnect for 120–277VAC input; use copper wiring rated per local code and manufacturer recommendations.
  • Installation and service should be performed by a qualified, licensed electrician in accordance with national and local electrical codes.

Technical specifications and certifications

Verified product specifications, environmental ratings, and safety information are summarized below.

  • Model / SKU: DI-120V-BW-WW-RGBW-4F-BL
  • Voltage: 120–277VAC (all-in-one input)
  • Power: 25W (4 ft model)
  • Lumen guidance: RGBW listed at 1125 lm (manufacturer specification)
  • Beam angle: 30° x 85°
  • Dimensions: 48 x 1.79 x 2.74 in. (L x W x H)
  • Environment: Outdoor / Wet Location, IP65 (field connections and terminations rated for wet locations)
  • Ambient temperature rating: −4 to 122°F (−20 to 50°C) per manufacturer ambient rating
  • Certifications: UL Listed (E503268); CAN/CSA standards referenced
  • Warranty: 5-year limited warranty

Before You Order

Verify the model and required quantity and confirm compatibility with your drivers, controllers, and project wiring.

  • Each maximum run requires a dedicated power feed from the driver; do not extend beyond the recommended maximum run length.
  • Ensure wire type, gauge, and temperature rating meet local electrical code and manufacturer recommendations.
  • Installation and service should be performed by a qualified, licensed electrician.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Diode LED BROADWAVE Wall Washer, 4 FT, RGBW, 25W, 1100lm, 120-277V, 30x85 Degree, IP65, DMX, Black Finish (DI-120V-BW-WW-RGBW-4F-BL). For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandDiode LED
SKUDI-120V-BW-WW-RGBW-4F-BL
Voltage120–277VAC
Wattage25W
Lumen guidanceRGBW listed at 1125 lm (manufacturer specification)
Beam angle30° x 85°
Dimensions (L × W × H)48 x 1.79 x 2.74 in.
IP / Environmental RatingOutdoor / Wet Location, IP65 (field connections and terminations rated for wet locations)
ControlIntegrated RDM-capable DMX decoder (DMX512 compatible)
Max daisy-chain guidanceUp to 30 fixtures (manufacturer guidance; each maximum run requires a dedicated power feed)
CertificationsUL Listed (E503268); CAN/CSA standards referenced
Warranty5-year limited warranty

Comments

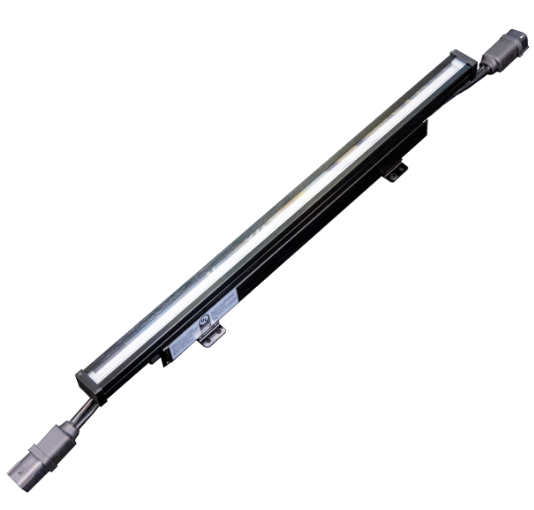

Diode LED DI-120V-BW-WW-RGBW-4F-BL LED Lighting Accessory
