Diode LED Channel Component Profile SQUARE 96 in 10 Pack

Product Overview

Aluminum LED channel extrusion designed to house low-voltage LED tape light and provide a finished linear run. Supplied as a 10-piece pack of 96 in sections.

Aluminum construction serves as the channel body and is intended to be used with compatible lenses, end caps, and mounting clips from the same channel series.

Key Features

• Aluminum construction
• Cut-to-length 96 in extrusion
• Pairs with matching Diode LED lenses, end caps, and mounting clips from the same channel series
• Supplied as a 10-piece pack
• Available finishes: Black (DI-CPCHA-SQ96B-10) and White (DI-CPCHA-SQ96W-10)

What this channel does

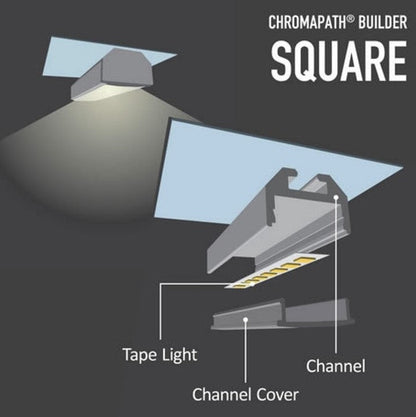

This Diode LED SQUARE channel is an aluminum extrusion designed to house low-voltage LED tape light and provide a finished linear appearance. The extrusion offers mechanical protection for the tape when installed with appropriate accessories.

• Houses LED tape to produce a clean linear trim
• Aluminum body provides the structural channel for the assembly

Recommended applications

Typical uses include locations where a finished linear LED tape installation is desired.

• Under-cabinet and above-cabinet lighting
• Cove, toe-kick, and perimeter lighting
• Shelf, display, and millwork edge lighting

Length and finish options

Each extrusion section is 96 inches long and is supplied as a pack of ten. Two finish SKUs are offered: black and white.

• Length: 96 in (per extrusion)
• Pack quantity: 10 pieces
• Finish / SKUs: Black — DI-CPCHA-SQ96B-10; White — DI-CPCHA-SQ96W-10

Compatibility with lenses and accessories

The channel is intended to be used with Diode LED lenses, end caps, and mounting clips from the same channel family to complete the installation and achieve a finished appearance.

• Use matching lenses to cover the LED tape
• End caps and mounting clips from the same series are used to finish and secure the run

Installation and handling notes

Plan for handling and supporting long 96 in extrusion sections during delivery and installation. Sections can be cut to length as needed to fit cabinetry and casework dimensions.

• Verify LED tape width fits the channel opening before installation
• Support the extrusion at mounting clip points to maintain straight runs
• Account for the 96 in length during delivery and on-site handling

Before You Order

Confirm the finish SKU and verify that your chosen LED tape width is compatible with this channel profile.

• Confirm finish SKU: DI-CPCHA-SQ96B-10 (Black) or DI-CPCHA-SQ96W-10 (White)

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Diode LED Channel Component Profile SQUARE 96 in 10 Pack. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
