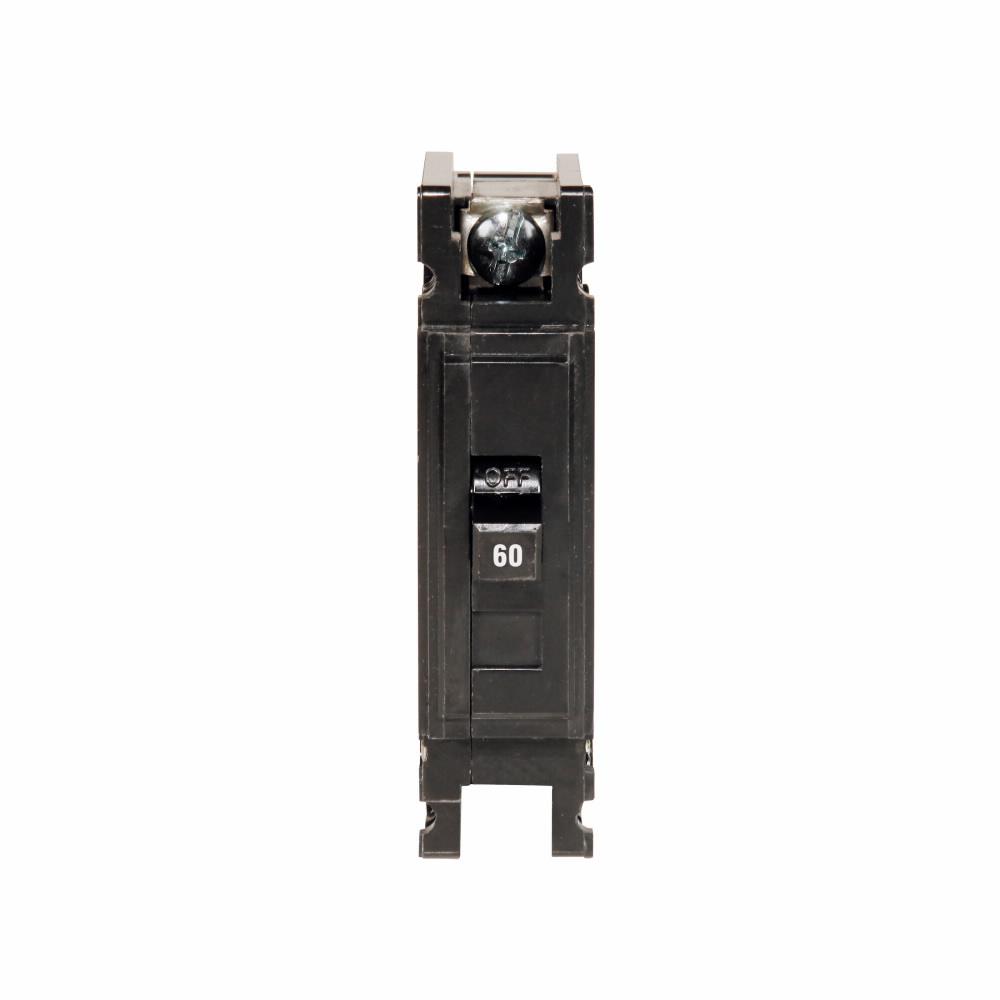

QC1060 - Cutler Hammer 60A 240V 1-Pole QC Series Thermal Magnetic Circuit Breaker, Cable-In/Cable-Out, 10kAIC, Panel Mount, UL/CSA

Product Overview

QC1060 is a Cutler Hammer QC Series 1‑pole thermal magnetic circuit breaker rated 60A at 240VAC for panel‑mount applications.

The device is cable‑in/cable‑out configured, has a 10kA interrupting rating, and carries UL and CSA designations as indicated in the product title.

Key Features

• 60 ampere continuous rating at 240 VAC (1‑pole)
• Thermal magnetic trip mechanism for overload and short‑circuit protection
• Cable‑in / cable‑out panel mount configuration
• 10 kA interrupting capacity (10kAIC)
• UL and CSA listed per product title

What this breaker protects and how it works

The QC1060 provides branch‑circuit protection using a thermal magnetic trip mechanism. The thermal element responds to prolonged overloads, while the magnetic element responds to high‑magnitude short circuits, offering both overload and short‑circuit protection in one device.

• One‑pole device for single‑phase circuits.
• Intended for standard branch‑circuit protection at the rated amperage.

Electrical ratings and interrupting capacity

Use the QC1060 where a 60 A, 240 VAC single‑pole breaker is required. The breaker is specified with a 10kA interrupting rating (10kAIC), which describes its ability to safely clear short‑circuit currents up to that level.

• Rated current: 60 A
• Voltage rating: 240 VAC (single‑pole)
• Interrupting rating: 10 kAIC

Mounting and cable connections

The breaker is a panel‑mount, cable‑in / cable‑out style intended for direct connection of conductors at both line and load. Confirm physical panel space and bus compatibility before selection.

• Panel mount configuration
• Cable‑in / cable‑out terminations (field wiring required)

Safety listings

The product title indicates UL and CSA listings. Refer to project documentation or the manufacturer for the specific listing file numbers and applicable standards when verifying code compliance.

• Listed as UL and CSA in product designation

Before You Order

Confirm the QC1060 model number, electrical system requirements, and panel/bus compatibility before ordering. For listing details, manufacturer documentation should be consulted to verify applicable standards and file numbers.

• Verify 60 A and 240 VAC suitability for your circuit.
• Confirm 10kAIC is adequate for available fault current at the installation location.
• Check physical breaker dimensions and panel bus type for fitment.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for QC1060 - Cutler Hammer 60A 240V 1-Pole QC Series Thermal Magnetic Circuit Breaker, Cable-In/Cable-Out, 10kAIC, Panel Mount, UL/CSA. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
