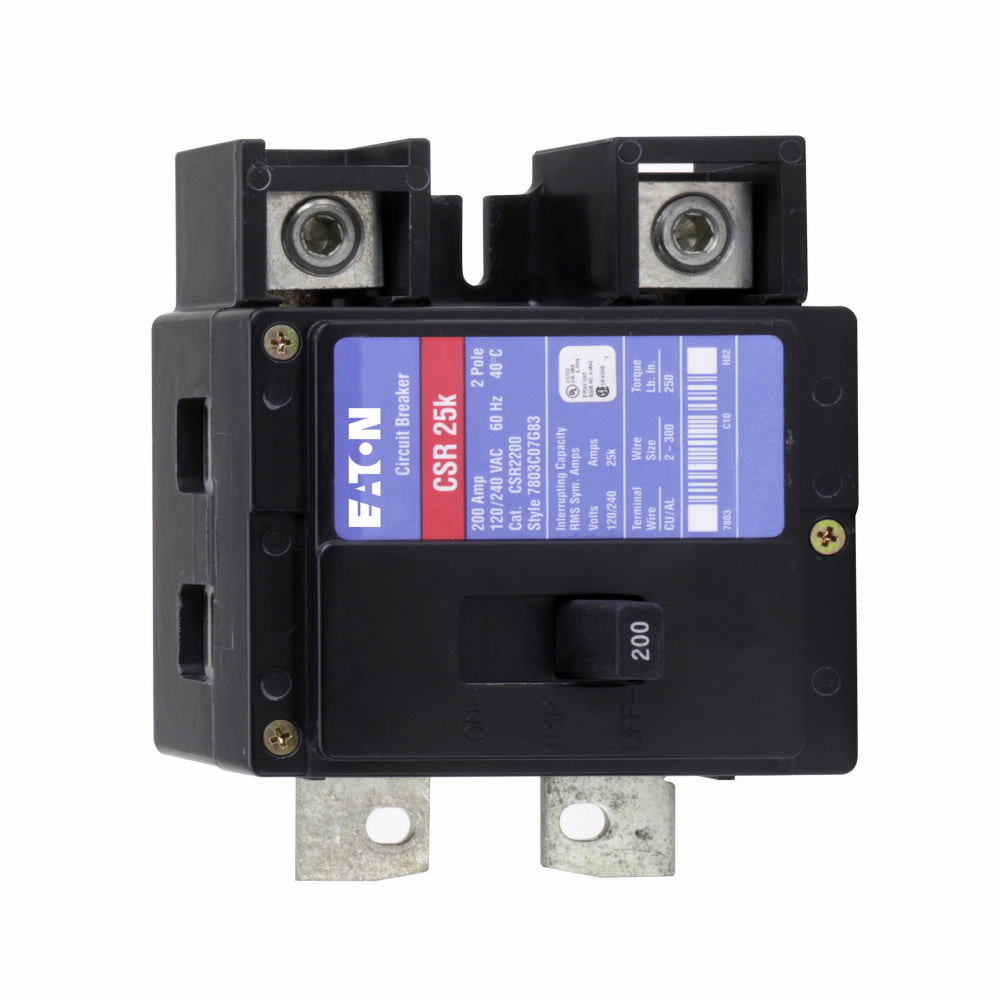

CSR2200N - Cutler Hammer 200A 240V 2-Pole Thermal Magnetic Circuit Breaker Plug-On CSR Frame

Product Overview

The CSR2200N is a Cutler Hammer two‑pole thermal‑magnetic circuit breaker rated 200 A at 240 V, designed for plug‑on mounting in CSR frame panelboards and load centers.

This listing is for the CSR2200N SKU. The unit is new; request a quote for pricing and availability.

Key Features

• 200 A ampere rating for 240 V systems
• Two‑pole, thermal‑magnetic trip mechanism
• Plug‑on mounting for CSR frame applications
• Manufacturer: Cutler Hammer

What this breaker does

The CSR2200N is a two‑pole circuit breaker that provides overcurrent protection using a thermal‑magnetic trip mechanism. It combines thermal elements for overload protection and magnetic elements for instantaneous short‑circuit protection.

• Two‑pole configuration protects both conductors in a 240 V branch circuit.
• Thermal‑magnetic trip provides both overload and short‑circuit interruption.

Electrical rating and basic load use

This SKU is rated at 200 amperes and designed for 240 V systems. Use this breaker where a 200 A two‑pole overcurrent device is required and the system voltage matches the 240 V rating.

• Ampere rating: 200 A
• Voltage rating: 240 V
• Poles: 2 (two‑pole)

Mounting style and panel compatibility

The CSR2200N is a plug‑on breaker built for the CSR frame. It mounts onto compatible CSR frame bus assemblies or panelboards intended for Cutler Hammer CSR series breakers.

• Mount: Plug‑on (CSR frame)
• Intended for CSR frame panelboards and load centers

Ordering and verification

Confirm the exact model number and that a CSR frame 200 A two‑pole breaker meets your application requirements before ordering. This listing is for the CSR2200N SKU and is sold by quote.

• Part number: CSR2200N
• Manufacturer: Cutler Hammer
• Condition: New
• Request a quote for pricing and availability

Before You Order

Confirm the model number (CSR2200N), the required ampere and voltage ratings, and that your panelboard accepts CSR frame plug‑on breakers. Request a quote for pricing and availability.

• Verify CSR frame compatibility with your panel's bus and enclosure.
• Confirm 200 A, 240 V two‑pole breaker is appropriate for the intended circuit.
• Contact Lumera Electric for a quote and to confirm availability.
