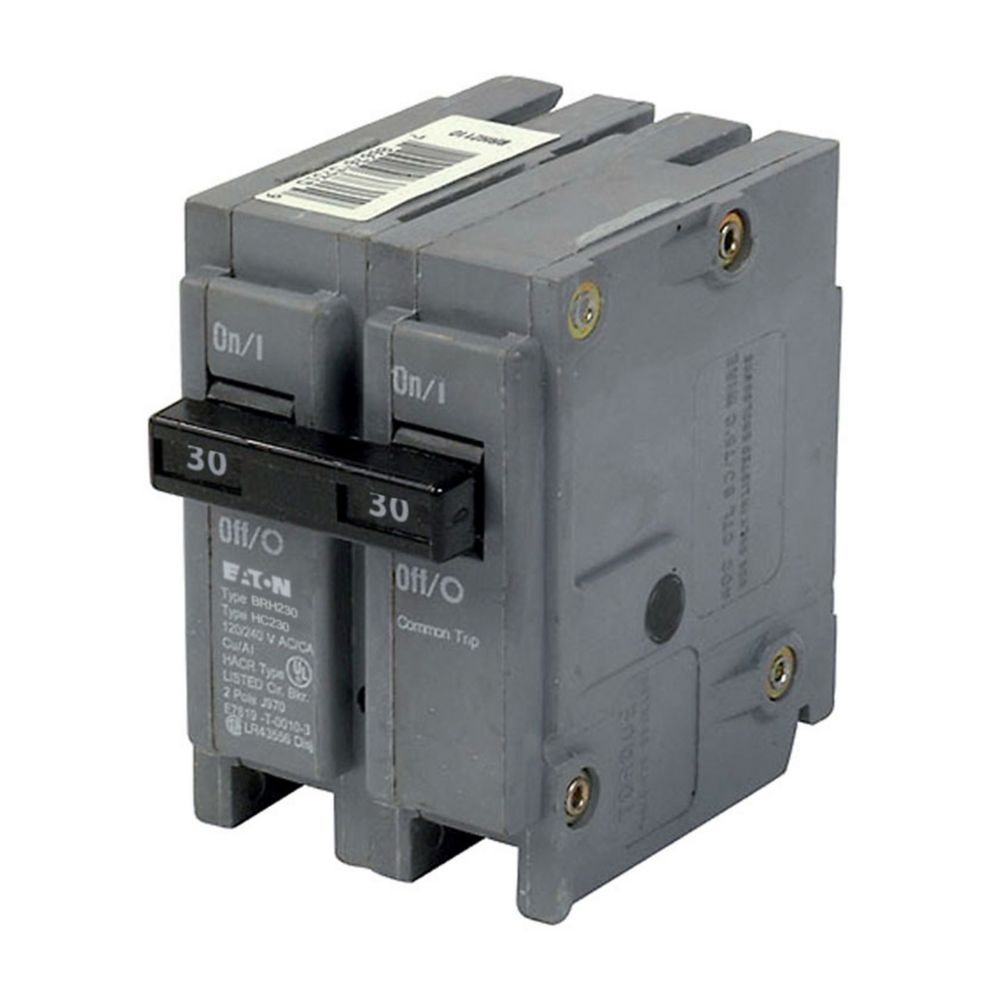

BRH230 - Cutler Hammer 30A 120/240V 2-Pole Plug-On BR Thermal Magnetic Circuit Breaker 22kAIC

Product Overview

The BRH230 is a Cutler Hammer 2-pole, 30A thermal-magnetic circuit breaker designed for 120/240V systems and plug-on installation in BR-series load centers.

This unit is rated 22kAIC and is supplied new. Request a quote for pricing and availability.

Key Features

• 30 amps, 2-pole thermal-magnetic protection for 120/240V circuits
• Plug-on BR form factor for BR-series load centers
• 22kAIC interrupting rating
• Manufacturer: Cutler Hammer; Part number/SKU: BRH230

Function and basic use

The BRH230 provides overcurrent protection using a thermal-magnetic trip mechanism. It is configured as a 2-pole breaker for use on 120/240V circuits where simultaneous disconnection of both ungrounded conductors is required.

• Intended for branch-circuit protection in residential and commercial load centers using BR-series plug-on breakers.
• Thermal-magnetic design offers both long-term overload protection (thermal) and short-circuit instantaneous trip (magnetic).

Electrical ratings and performance

Use the BRH230 when a 30A two-pole protection device rated for 120/240V and a 22kAIC interrupting capacity is required.

• Nominal current: 30 A
• Poles: 2 (simultaneous disconnect for both ungrounded conductors)
• Voltage: 120/240 V
• Interrupting rating: 22 kAIC

Mounting and panel compatibility

The BRH230 is a plug-on style BR-series breaker intended for installation in compatible Cutler Hammer BR load centers and panelboards that accept BR form-factor breakers.

• Plug-on mounting — installs into BR-series bus configuration
• Confirm panel model accepts BR-style plug-on breakers before ordering

Ordering and verification

Confirm the exact model number and required quantity before placing an order. Request a quote for pricing and availability.

• Manufacturer: Cutler Hammer
• Part number / SKU: BRH230
• Condition: New

Before You Order

Confirm the panel model and that it accepts BR-series plug-on breakers. Verify the breaker quantity and part number (BRH230) before requesting a quote.

• Confirm compatibility with your load center (BR form factor).
• Verify that 30A, 2-pole, 120/240V with 22kAIC meets your electrical and code requirements.
• Request a quote for pricing and availability.
