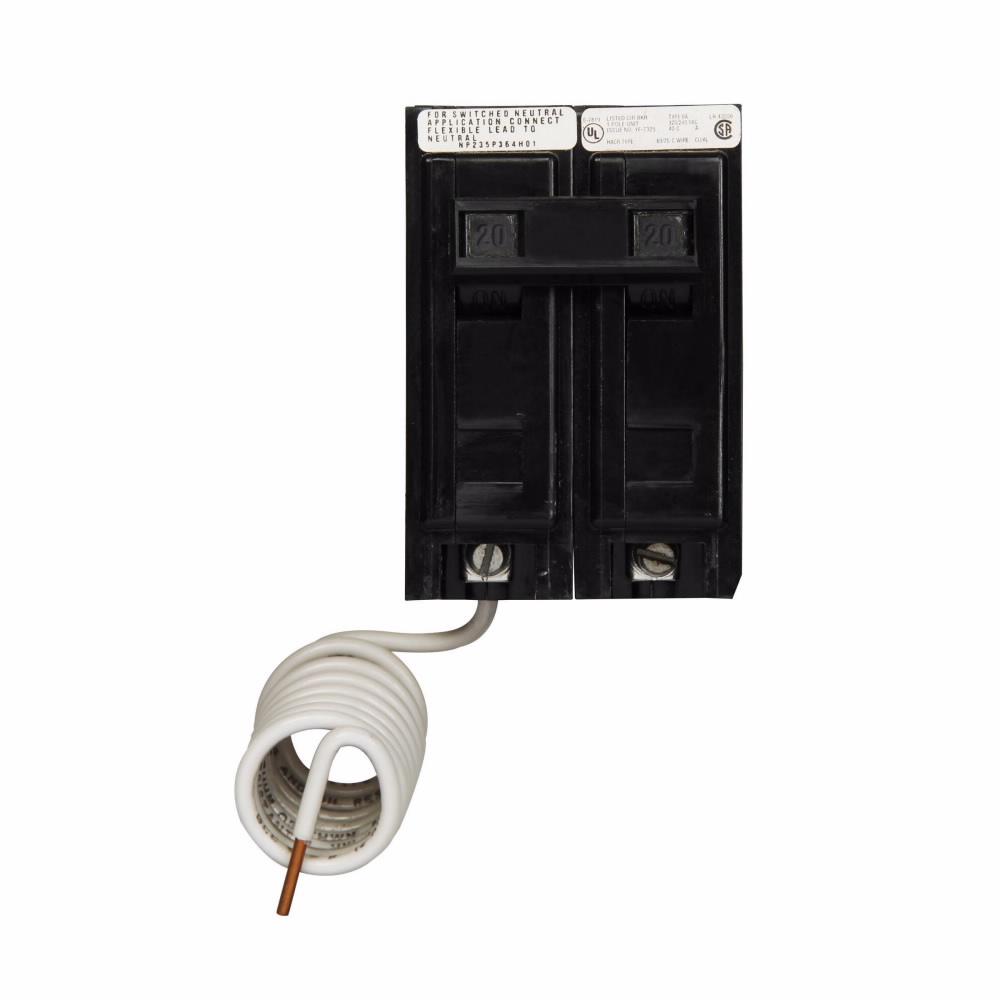

BAB2020S - Cutler Hammer 20 Amp 2 Pole 120/240VAC Bolt-On BAB Series Thermal Magnetic Circuit Breaker, 10kAIC, Quicklag, Shunt Trip, UL CSA HACR

Product Overview

The BAB2020S is a Cutler Hammer BAB Series thermal‑magnetic, bolt‑on circuit breaker rated 20 amps for 2‑pole 120/240VAC applications. It includes quicklag and shunt trip features and is listed with UL, CSA, and HACR markings.

This SKU is supplied as a single 2‑pole bolt‑on breaker (BAB2020S). Confirm model and quantity when ordering and request a quote for pricing and availability.

Key Features

• 20 amp, 2‑pole thermal‑magnetic protection for 120/240VAC systems
• Bolt‑on mounting (BAB Series)
• 10 kAIC interrupting rating
• Quicklag and shunt trip functionality
• UL, CSA and HACR markings

Function

The BAB2020S provides two‑pole thermal‑magnetic overcurrent protection for 120/240VAC circuits. It interrupts both poles simultaneously for multi‑wire branch circuits and combines thermal (overload) and magnetic (short‑circuit) tripping elements.

• Designed for branch‑circuit protection in distribution panels and equipment
• Two‑pole design protects both conductors of a 120/240VAC multi‑wire circuit

Electrical Ratings

Use the BAB2020S where a 20 amp, 2‑pole breaker rated for 120/240VAC is required. The unit carries a 10 kAIC interrupting rating.

• Rated current: 20 A
• Poles: 2
• Voltage: 120/240 VAC
• Interrupting rating: 10 kAIC

Features and Controls

This BAB Series breaker includes quicklag and a shunt trip. Quicklag provides a specific trip characteristic (as supplied by the manufacturer), and the shunt trip allows remote tripping of the breaker when wired to an appropriate control circuit.

• Quicklag — factory‑specified trip response
• Shunt trip — permits remote electrical trip operation when connected to a control device

Certifications and Markings

The BAB2020S is marked for UL and CSA recognition and carries HACR designation for use with heating, air‑conditioning and refrigeration equipment where applicable.

• UL listed
• CSA recognized
• HACR marked

Mounting and Physical Form

The BAB2020S is a bolt‑on style breaker from the Cutler Hammer BAB Series intended for bolt‑on distribution panel installations.

• Mounting type: bolt‑on (BAB Series)

Before You Order

Confirm the model number and quantity required before ordering. Request a quote for pricing and availability.

• Verify system voltage, pole count and interrupting rating match your application.
• Confirm that bolt‑on mounting is compatible with your panel.
• If remote trip capability is required, plan wiring for the shunt trip connection per the equipment control documentation.
