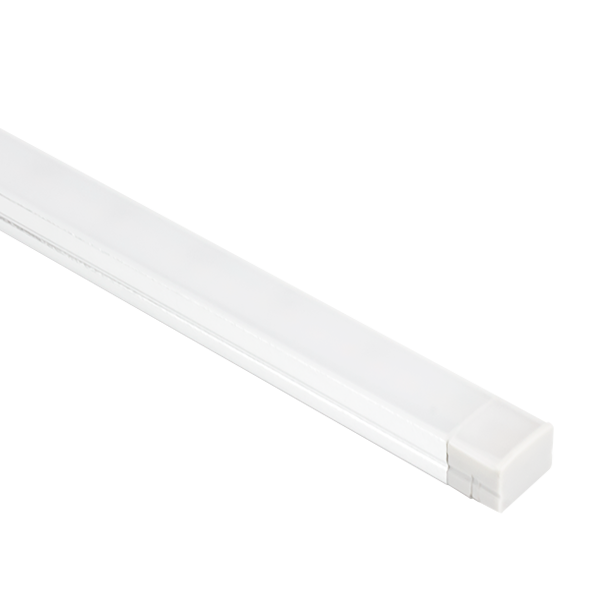

MLINK-30-16 MicroLink 24V Task Light 30K 16in

Product Overview

The MLINK-30-16 MicroLink is a 16" low-voltage undercabinet/task light that delivers warm white illumination with high color fidelity. It produces 520 lumens at approximately 5.8 watts from a 24VDC feed.

Finished in satin aluminum and rated CRI 90+, this fixture is intended for cabinet, display, and other task-lighting applications where compact, high-quality light is required.

Key Features

• Length: 15.68 inches (16" nominal)
• Output: 520 lumens from 5.8 W (24VDC)
• Color temperature: 3000K (warm white)
• High color rendering: CRI 90+
• Finish: Satin Aluminum

What this light is for

The MLINK-30-16 MicroLink is designed as a low-voltage task and undercabinet fixture. Its compact 16" length and satin aluminum finish suit kitchen undercabinet lighting, display cases, work surfaces, and other areas where directed, low-profile illumination is desirable.

Performance and light output

This model delivers 520 lumens while consuming approximately 5.8 watts, producing a bright, energy-efficient output for its size. The color temperature is 3000K (warm white) with a Color Rendering Index (CRI) of 90+, which supports accurate color appearance for tasks and displays.

• Lumen output: 520 lm
• Power draw: 5.8 W (catalog lists 6 W nominal)
• Color temperature: 3000K
• CRI: 90+

Dimensions and finish

Use the MLINK-30-16 where a compact, low-profile fixture is required. Physical dimensions are provided for planning and installation.

• Nominal length: 16 in (product length listed as 15.68 in)
• Width: 0.5 in
• Height/thickness: 0.39 in
• Finish: Satin Aluminum

Electrical and compatibility

The MLINK-30-16 is a 24VDC fixture and requires a 24-volt low-voltage power source or driver. Confirm compatibility with your low-voltage lighting system and driver before installation.

• Input: 24VDC
• Sold as individual units (each)

Before You Order

Confirm the model number (MLINK-30-16), required quantity, and that a 24VDC driver or supply is available for your installation.

• Verify 24VDC compatibility with existing drivers or plan to include a compatible driver.
• Confirm physical clearance for a 15.68" × 0.5" × 0.39" fixture and desired finish.
• Check that the 3000K color temperature and CRI 90+ meet your project requirements.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for MLINK-30-16 MicroLink 24V Task Light 30K 16in. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
