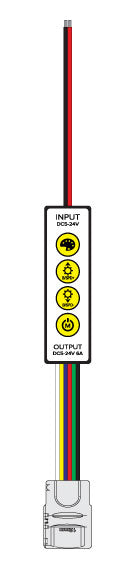

INLINE-RGBTW-CTRL RGBTW Simple Select In-line Controller

Product Overview

Compact in-line controller for RGBTW (Red/Green/Blue/Tunable White) LED tape lighting.

Rated for 5–6 A load and supplied with 30 cm (11.8 in) 20 AWG lead wires on both input and output. Output lead includes an HD connector; input lead provides a screw-down terminal port and a DC barrel connection option.

Key Features

• For RGBTW LED tape lighting
• 5–6 amp output rating
• 20 AWG lead wires, 30 cm (11.8 in) on both input and output
• Output lead with HD connector; input lead with screw-down terminal port and DC barrel connection option
• Compact in-line form factor (2.2 in × 0.39 in × 0.06 in)

What this controller does

This in-line controller is described for use with RGBTW LED tape lighting and is intended to be placed between a DC power source and the LED tape to provide a selectable control point.

• Provides an in-line control interface for RGBTW tape (red, green, blue, tunable white).
• Supplied as a compact, inline unit rather than a panel- or wall-mounted controller.

Electrical/load rating and wiring

The product listing specifies an output rating of 5–6 A and 20 AWG lead wires. Use these values to confirm the controller meets your tape and power supply requirements.

• Rated output: 5–6 A (aggregate rating as listed).
• Lead wire: 20 AWG, 30 cm (11.8 in) on both input and output.

Input and output connections

The controller is supplied with terminated leads to simplify connection to common tape and power supply terminations.

• Output: 30 cm (11.8 in) 20 AWG lead terminated with an HD connector (as listed).
• Input: 30 cm (11.8 in) 20 AWG lead terminating in a screw-down terminal port and a DC barrel connection option (as listed).

Physical size and form factor

Dimensions are provided for checking fit in confined spaces along the LED tape run.

• Length: 2.2 in
• Width: 0.39 in
• Height/thickness: 0.06 in

Before you order

Verify that your LED tape is RGBTW and that its combined current draw does not exceed the controller's 5–6 A rating.

• Confirm the output HD connector and input screw terminal/DC barrel match your tape and power supply connections.

Before You Order

Confirm the model and that your LED tape is RGBTW and within the listed 5–6 A output rating.

• Ensure the listed connectors match your tape and power supply connections.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for INLINE-RGBTW-CTRL RGBTW Simple Select In-line Controller. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
