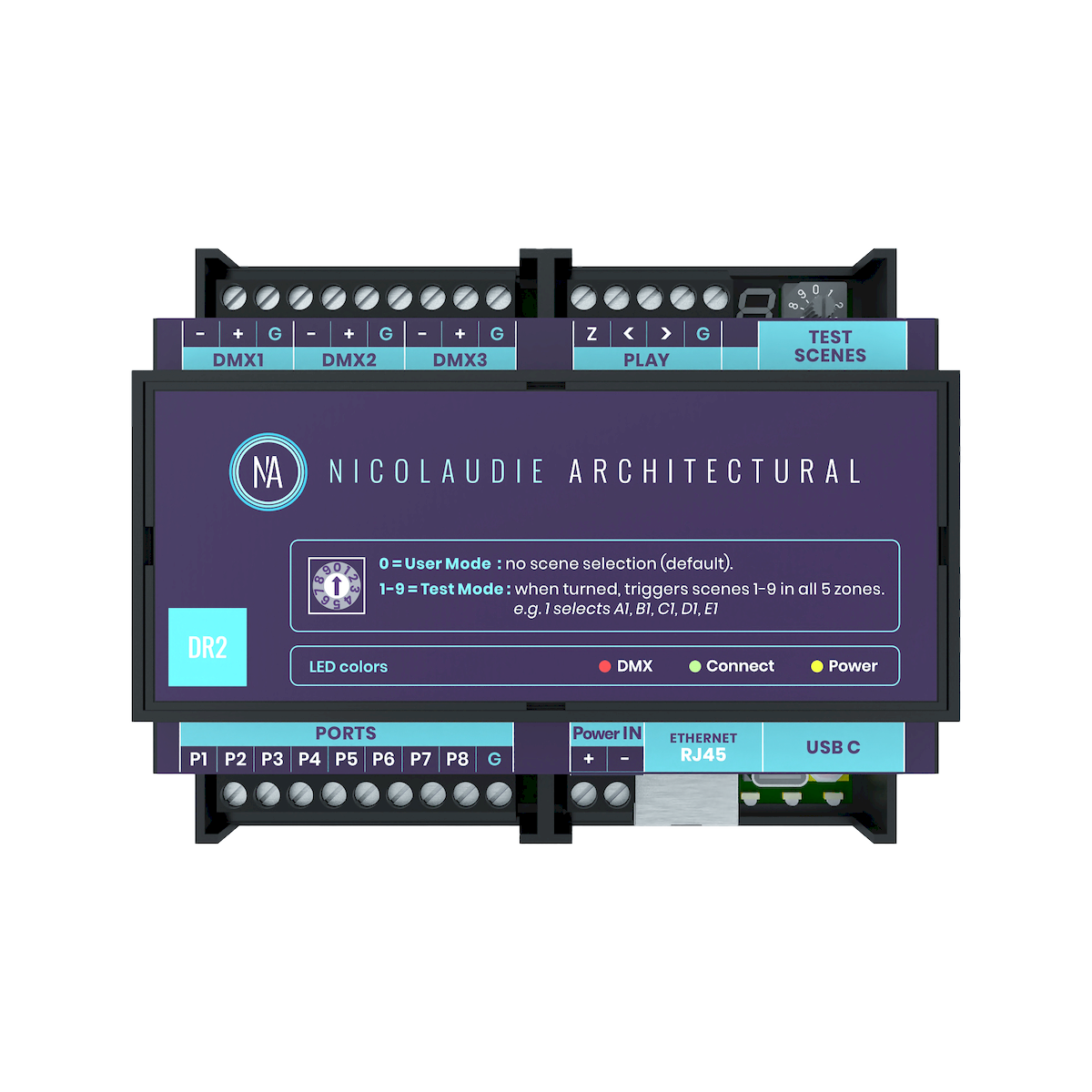

AML-DMX-N-DINADR2 1024ch, Cloud, USB, Ethernet, 8 ports, 99 scenes, 5 zones

Product Overview

DIN-rail mount DMX lighting controller by American Lighting (NICOLAUDIE platform) with 1024 DMX channel capacity.

Supports cloud control, USB and Ethernet connectivity; provides 8 DMX output ports, up to 99 scenes and 5 programmable zones. Includes 12V PowerDIN adapter.

Key Features

• 1024 DMX channel capacity
• Cloud, USB and Ethernet control options
• 8 DMX output ports
• Programmable: 99 scenes and 5 zones
• Includes 12V PowerDIN adapter for DIN-rail mounting

What this controller does

Direct DMX control for lighting rigs: the AML-DMX-N-DINADR2 is a DIN-rail–mount DMX controller sized for installations that require up to 1024 DMX channels. It is designed to manage multiple fixtures and complex scenes from local and networked control points.

Control interfaces include cloud access plus direct USB and Ethernet connections for local or remote management workflows.

• Total channel capacity: 1024 DMX channels
• Intended use: centralized DMX control for lighting installations

Connectivity and ports

The unit provides multiple physical and network connection options to integrate into a control system. Use Ethernet or cloud connectivity for remote or networked control, or USB for local programming and connection.

Eight DMX output ports allow distribution to multiple DMX runs or subnets from a single controller.

• Network: Ethernet and cloud control support
• Local: USB connection
• DMX outputs: 8 DMX ports

Scenes, zones and programming

The controller supports onboard scene and zone organization to structure lighting sequences and simplify operation. Scenes and zones are configured via the controller’s supported programming interfaces.

Capacity limits are fixed to 99 scenes and 5 zones for on-device programming and recall.

• Programmable scenes: up to 99
• Programmable zones: up to 5

Mounting and included power accessory

The AML-DMX-N-DINADR2 is supplied with a PowerDIN 12V adapter designed for DIN-rail installation, enabling neat mounting in control cabinets or enclosures that accept DIN-rail components.

Confirm the enclosure, available rail space and access to a suitable 120/240V mains outlet for the included 12V adapter when planning installation.

• Mounting: DIN-rail compatible
• Includes: PowerDIN 12V adapter

Before you order

Confirm this exact model and its programming limits match your installation requirements. Verify how you plan to connect to the controller (Ethernet, cloud, USB) and that 8 DMX ports and 1024 channels meet your fixture and addressing plan.

• Confirm the model number AML-DMX-N-DINADR2 and quantity required before ordering.
• Ensure the included 12V PowerDIN adapter matches your site’s power and enclosure needs.

Before You Order

Confirm the model number and quantity required before ordering. Verify that 1024 channels, 8 DMX ports, 99 scenes and 5 zones meet your control and addressing plan. Check that DIN-rail mounting and the included 12V PowerDIN adapter are compatible with your enclosure and site power.

• Verify connectivity method you will use: cloud, Ethernet or USB.
• Confirm addressing plan fits within 1024 DMX channels and 8 output ports.
• Ensure adequate DIN-rail space and access to mains power for the included 12V adapter.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for AML-DMX-N-DINADR2 1024ch, Cloud, USB, Ethernet, 8 ports, 99 scenes, 5 zones. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
