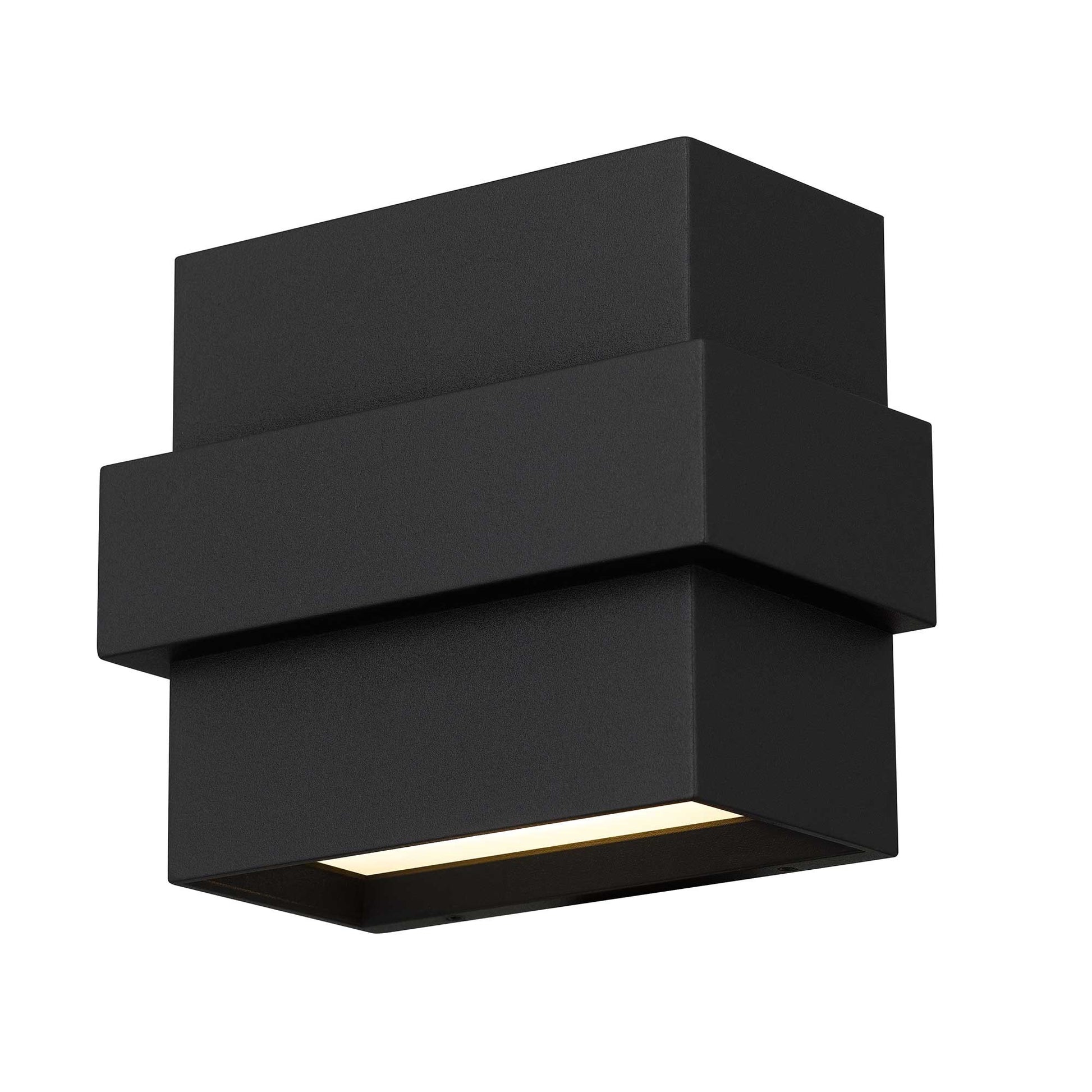

Alteck Summit 5 in. Black LED Outdoor Wall Sconce, Selectable CCT AW0027-3CCT-W-BK

Product Overview

The Alteck Summit AW0027-3CCT-W-BK is a 12 W integrated LED outdoor wall sconce delivering 476.8 lumens with field-selectable color temperatures of 3000K, 4000K, or 5000K.

Constructed from aluminum with a Sand Black finish and a sand blast glass diffuser, the fixture is IP65-rated for wet locations, ETL listed, dark-sky-friendly and ADA-compliant according to the provided product data.

Key Features

• 12 W integrated LED — 476.8 lumens, 90 CRI
• Field-selectable 3-CCT: 3000K, 4000K, 5000K
• Triac (forward-phase) dimming compatibility
• IP65 wet-location rating and ETL listed
• Downward-directed design to limit uplight
• Aluminum housing with Sand Black finish and sand blast glass diffuser
• Rated life: 54,000 hours; LED warranty: 5 years; finish warranty: 3 years

What this fixture does

The Alteck Summit AW0027-3CCT-W-BK provides downward exterior illumination from a compact wall-mounted housing suitable for entryways, facades, walkways and perimeter lighting.

• Integrated LED delivers 476.8 lumens from a 12 W module.
• Downward-directed output reduces uplight.

Light output and color temperature

Field-selectable color temperature allows the fixture to be set to 3000K, 4000K or 5000K at installation. The LED engine is specified at 90 CRI.

• Selectable CCT: 3000K / 4000K / 5000K (3-CCT)
• Lumens: 476.8 lm
• CRI: 90

Voltage and dimming compatibility

The sconce is rated for 120–277V line-voltage operation and is specified as compatible with Triac (forward-phase) dimming. Verify dimmer compatibility and load range on-site.

• Input voltage: 120–277V
• Dimming: Triac (forward-phase)

Location, ingress protection and listings

The fixture is specified with an IP65 rating and a wet-location rating and is ETL listed. The design directs light downward to limit uplight according to the product data.

• IP rating: IP65
• Location rating: Wet Location
• Safety listing: ETL Listed
• Downward-directed (dark-sky-friendly) design

Size, materials and finish

Compact, low-profile design with aluminum construction, Sand Black finish and a sand blast glass diffuser to produce even, diffuse illumination.

• Height: 5 in
• Width: 5.75 in
• Backplate: 5.75 L x 5 W
• Material: Aluminum
• Finish: Sand Black
• Diffuser: Sand Blast Glass

Rated life and warranties

The integrated LED is specified for 54,000 hours. Warranties are listed as 5 years for the LED and 3 years for the finish.

• Rated life: 54,000 hours
• LED warranty: 5 years
• Finish warranty: 3 years
• Country of origin: China

Before You Order

Verify the planned mounting location is suitable for an IP65 wet-location fixture and confirm dimmer compatibility on-site.

• Confirm the fixture's 120–277V wiring and junction box compatibility.
• If dimming is required, check the chosen dimmer's LED load range and compatibility with forward-phase (Triac) control.
• Decide the desired CCT (3000K, 4000K, or 5000K) at installation; CCT is field-selectable.
