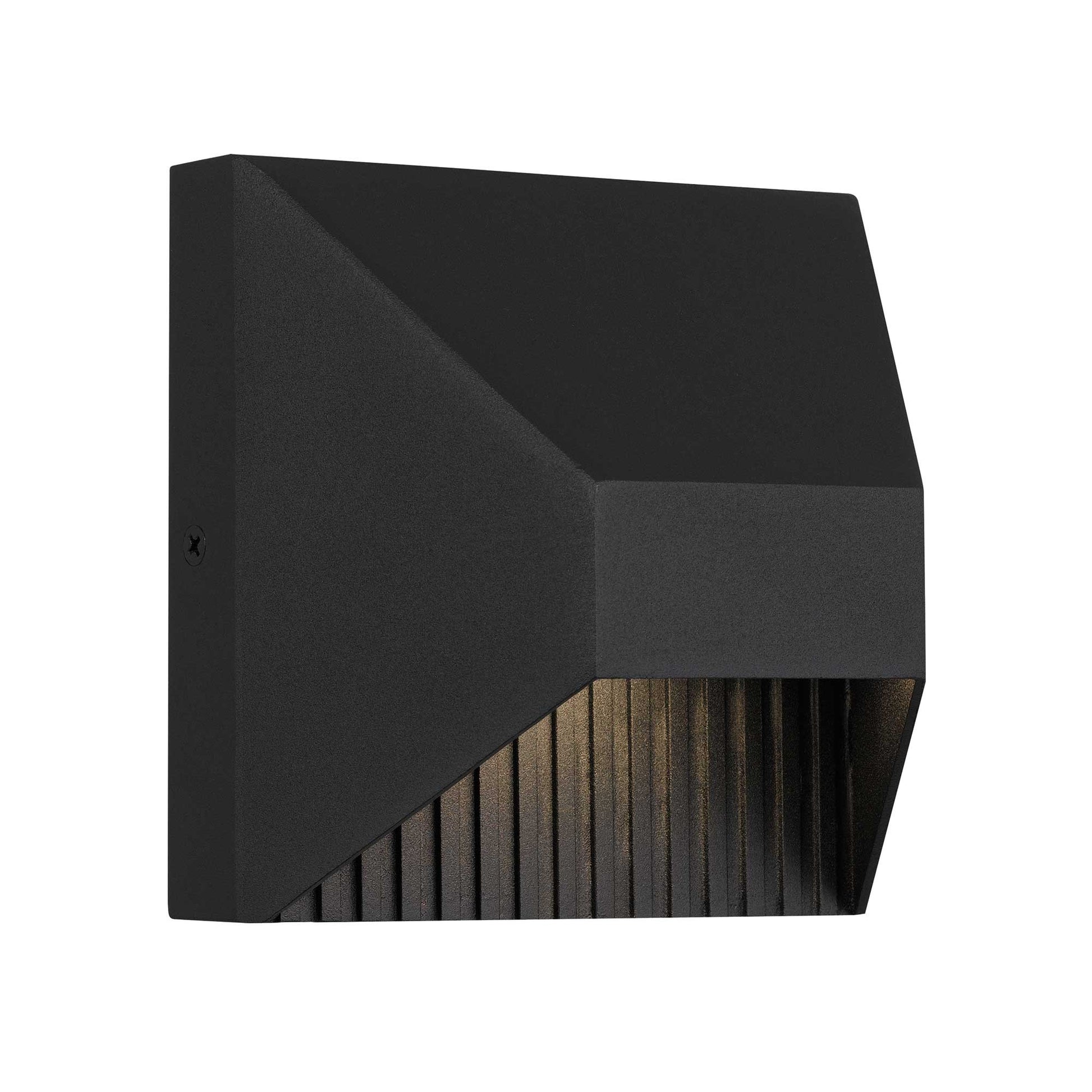

Alteck Ribbed 5.125 in. Black LED Outdoor Wall Sconce, Selectable CCT AW0008-3CCT-W-BK

Product Overview

The Alteck Ribbed AW0008-3CCT-W-BK is a compact outdoor LED wall sconce with an 11 W integrated module that delivers 477 lumens. Color temperature is field-selectable between 3000K, 4000K, and 5000K.

The fixture has an aluminum Sand Black housing and a sand blast acrylic diffuser. It is rated IP44 for wet locations, ETL-listed, ADA-compliant, and described as directing light downward.

Key Features

• 11 W integrated LED — 477 lumens, CRI 80
• Field-selectable color temperature: 3000K, 4000K, 5000K (3-CCT)
• Triac (forward-phase) dimmable
• IP44 wet-location rating and ETL listing
• Aluminum body with Sand Black finish and sand blast acrylic diffuser
• ADA-compliant design
• Rated life: 54,000 hours; LED warranty: 5 years; finish warranty: 3 years

Function and light output

The AW0008-3CCT-W-BK produces 477 lumens from an 11 W integrated LED and has a CRI of 80. Color temperature can be set in the field to 3000K, 4000K, or 5000K.

The product description indicates the fixture directs light downward.

• Output: 477 lm
• Wattage: 11 W (integrated LED)
• CRI: 80
• Selectable CCT: 3000K / 4000K / 5000K

Typical applications

The manufacturer description lists common uses such as exterior entries, facades, walkways, and building perimeters for residential and commercial exteriors.

• Exterior entries and facades
• Walkways and perimeter lighting
• Residential and commercial exterior projects
• Replacement for older exterior sconces

Electrical and dimming

The fixture is specified for 120–277V line-voltage operation and is described as Triac (forward-phase) dimmable. Verify any dimmer's compatibility and minimum load for low-wattage LEDs during installation.

• Voltage: 120–277V
• Dimming: Triac (forward-phase) — check dimmer compatibility

Mounting and dimensions

The AW0008 installs as a wall-mounted sconce. Overall width and height are both listed as 5.125 in, with a backplate dimension of 5.125 in W x 1.125 in E.

• Mounting type: Wall mount
• Width: 5.125 in
• Height: 5.125 in
• Backplate: 5.125 W x 1.125 E

Materials, finish, and ratings

Constructed from aluminum with a Sand Black finish and a sand blast acrylic diffuser. The fixture carries an IP44 rating for wet locations and is ETL-listed. Manufacturer-rated life for the integrated LED is listed at 54,000 hours, with a 5-year LED warranty and 3-year finish warranty.

• Material: Aluminum
• Finish: Sand Black
• Diffuser: Sand Blast Acrylic
• IP rating: IP44 (wet location)
• Safety listing: ETL Listed
• Rated life: 54,000 hours
• Warranties: LED 5 years; finish 3 years

Before You Order

Verify the intended mounting location and environmental conditions match the fixture's IP44 wet-location rating.

• Confirm mounting location and junction box compatibility.
• Verify dimmer compatibility with low-wattage LED loads.
• Decide which CCT (3000K, 4000K, 5000K) to set in the field.
