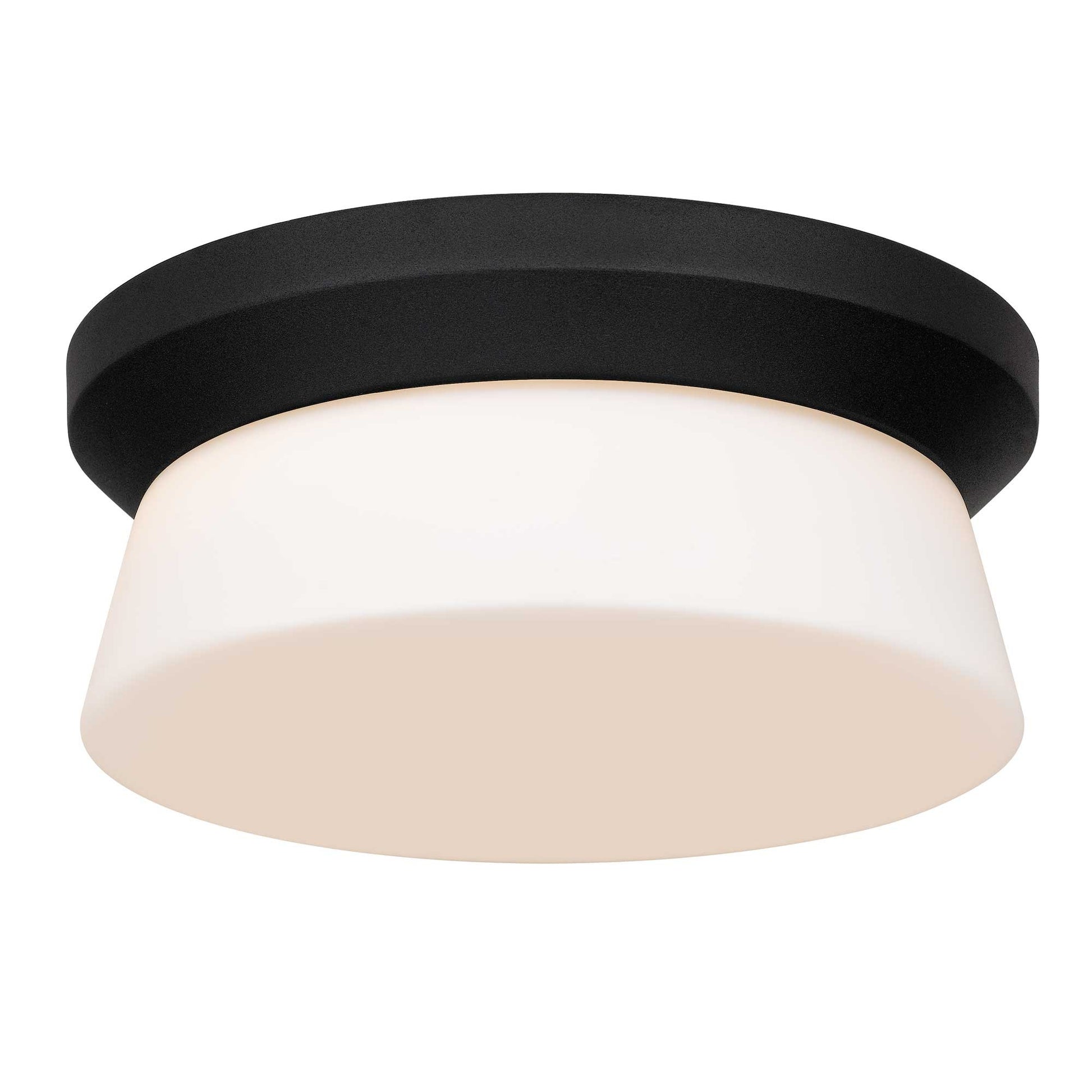

Alteck Skirt Flush mount 11 in. Black LED Outdoor Flush Mount, Selectable CCT AFM0148-3CCT-W-BK
Alteck Skirt Flush mount 11 in. Black LED Outdoor Flush Mount, Selectable CCT AFM0148-3CCT-W-BK
Regular price
$265.00
Regular price
Sale price
$265.00
SKU:AFM0148-3CCT-W-BK
Quantity
Couldn't load pickup availability
The Alteck Skirt Flush mount AFM0148 outdoor LED flush mount delivers 1369 lumens of selectable 3000K, 4000K, or 5000K light from a 25-watt integrated LED, designed for covered porch, entry, and soffit ceilings. The fixture carries a Sand Black finish on an aluminum body and installs as a surface / flush ceiling mount.
Key Features
- Field-selectable color temperature lets one fixture cover 3000K, 4000K, or 5000K without restocking
- Integrated LED rated for 54,000 hours, reducing exterior maintenance and relamping
- Triac dimming works with standard forward-phase wall dimmers
- IP44-rated build is suited to exterior wet-location exposure
- ADA-compliant low profile for code-restricted walls and walkways
- Etched White Opal Glass spreads even, diffuse illumination
- Backed by a 3-year finish and 5-year LED warranty
Technical Specifications
| Brand | Alteck |
|---|---|
| Model / SKU | AFM0148-3CCT-W-BK |
| Collection | Skirt Flush mount |
| Product Type | Outdoor LED Flush Mount |
| LED Wattage | 25 W |
| Lumens | 1369 lm |
| Color Temperature | Selectable 3000K, 4000K, or 5000K (3-CCT) |
| CRI | 80 |
| Voltage | 120V |
| Dimming | Triac (forward phase) |
| Mounting Type | Surface / flush ceiling mount |
| Diameter | 11 in |
| Height | 4.5 in |
| Material | Aluminum |
| Finish | Sand Black |
| Diffuser | Etched White Opal Glass |
| Location Rating | Wet Location |
| IP Rating | IP44 |
| ADA Compliant | Yes |
| Rated Life | 54,000 hours |
| Safety Listing | ETL Listed |
| Finish Warranty | 3 Year |
| LED Warranty | 5 year |
| Country of Origin | China |
Applications
Common applications include:
- Covered porch and entry ceilings
- Soffit and overhang exterior lighting
- Exterior walkway and passage ceilings
- Replacement of dated exterior flush mounts
Compatibility and Installation Notes
- Confirm the mounting location matches the fixture's wet location and IP44 rating before installation.
- Pair with a compatible Triac (forward-phase) dimmer and verify the dimmer load range against the fixture wattage.
- Wired for 120V line-voltage operation on a standard exterior junction box.
Lumera Electric stocks the Alteck Skirt Flush mount flush mount for exterior exterior ceilings where a selectable-CCT outdoor fixture is specified.
