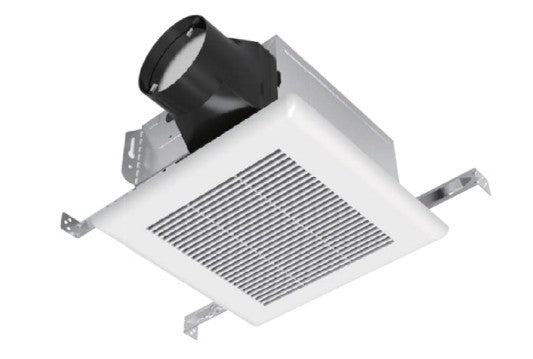

AirZone Fans SNPD100H Ventilation Fan with Humidity Sensor 110 CFM 0.7 Sones

Product Overview

The AirZone Fans SNPD100H is a ventilation fan from the SNPD SERIES with an integrated humidity sensor and a 2-speed DC motor. The low speed is specified for continuous operation and the unit is rated at 110 CFM and 0.7 sones.

The fan supports ceiling or wall mounting, uses a 4" duct connection, and has a housing height of 5-3/4".

Key Features

• 110 CFM airflow with 0.7 sones sound rating
• Integrated humidity sensor
• 2-speed DC motor with low-speed continuous operation specified
• 4" duct connection and 5-3/4" housing height
• No lamp or motion sensor included

What this fan does

The SNPD100H is a ventilation fan with a humidity sensor that operates the fan based on relative humidity. It includes a two-speed DC motor; the low speed is specified for continuous operation.

Common uses

Typical uses listed for this model include bathroom ventilation, residential exhaust, light commercial ventilation, and moisture-control applications.

Performance and sound

Rated airflow is 110 CFM and the listed sound rating is 0.7 sones (low speed).

Mounting and ducting

The unit is intended for ceiling or wall mounting. It connects to a 4" duct and has a housing height of 5-3/4".

• Mounting: ceiling or wall
• Duct size: 4"
• Housing height: 5-3/4"

Technical specifications

Key technical details for quick reference.

• Brand: AirZone Fans
• Model: SNPD100H
• Series: SNPD SERIES
• Product type: Ventilation fan with humidity sensor
• CFM: 110
• Sones: 0.7
• Motor: 2-speed DC (low speed specified for continuous operation)
• Duct: 4"
• Housing height: 5-3/4"
• Lamps: No
• Motion sensor: No
• Humidity sensor: Yes
• UPC: 182160001056
• SKU: SNPD100H

Before You Order

Verify that a 4" duct connection and a 5-3/4" housing depth fit your installation and confirm the correct model and quantity.

• Confirm mounting location and available housing depth
• Confirm compatibility with existing 4" ductwork
