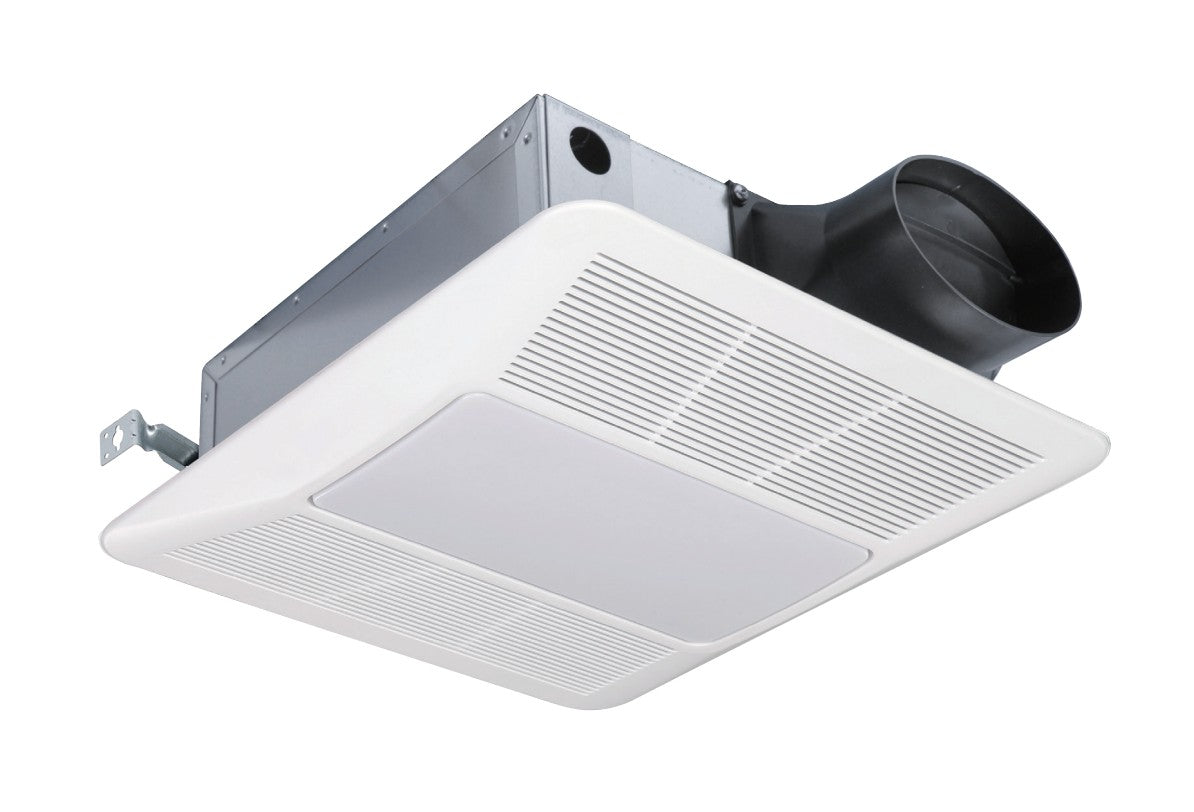

AirZone Fans SES80HLED Ventilation Fan Light Kit 80 CFM 1.1 Sones

Product Overview

The AirZone Fans SES80HLED is an ultra‑shallow ventilation fan light kit from the SES series. It combines an 80 CFM exhaust fan with an integrated 10W LED lamp and a built‑in humidity sensor.

Designed for shallow ceiling installations, the SES80HLED has a 3-3/4" housing height, connects to 4" ducting, and is rated at 1.1 sones for sound.

Key Features

• 80 CFM airflow
• Sound rating: 1.1 sones
• Ultra‑shallow housing: 3-3/4"
• Duct connection: 4"
• Integrated 10W LED lamp
• Built‑in humidity sensor (no motion sensor)

What this unit does

The SES80HLED is a combined ventilation fan and light kit intended for exhaust and illumination in bathrooms and similar spaces. It integrates a fan rated at 80 CFM with a 10W LED lamp and a humidity sensor to help control moisture.

• Combined exhaust fan and LED lighting in one fixture
• Humidity sensor provides automated operation based on moisture levels
• No motion sensor included

Performance and acoustic rating

Use the SES80HLED where an 80 CFM exhaust capacity and a low audible profile are required. The unit is rated at 1.1 sones, which indicates a relatively quiet operating level for residential ventilation applications.

• Airflow: 80 CFM
• Noise: 1.1 sones

Installation profile and physical fit

The SES80HLED is built for installations with limited plenum depth. Its ultra‑shallow housing reduces the required ceiling clearance while connecting to standard 4" ducting.

• Housing height: 3-3/4" — suitable for shallow ceilings
• Duct connection: 4"

Controls and sensors

This model includes a humidity sensor for humidity‑triggered ventilation. It does not include a motion sensor; any additional control/override requirements should be verified during installation.

• Humidity sensor: Yes
• Motion sensor: No
• Light: Integrated 10W LED

Technical specifications

Key specifications for the SES80HLED are provided below for quick reference.

• Brand: AirZone Fans
• Model: SES80HLED
• Series: SES SERIES
• CFM: 80
• Sones: 1.1
• Lamps: 10W LED
• Duct: 4"
• Housing height: 3-3/4"
• UPC: 182160000936

Before You Order

Confirm the model number and quantity required before ordering. Verify ceiling/plenum depth and duct size at the installation location to ensure the 3-3/4" housing and 4" duct connection are compatible with your project.

• Confirm model: SES80HLED
• Verify ceiling clearance for 3-3/4" housing
• Verify existing ductwork is 4" or can be adapted

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for AirZone Fans SES80HLED Ventilation Fan Light Kit 80 CFM 1.1 Sones. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
